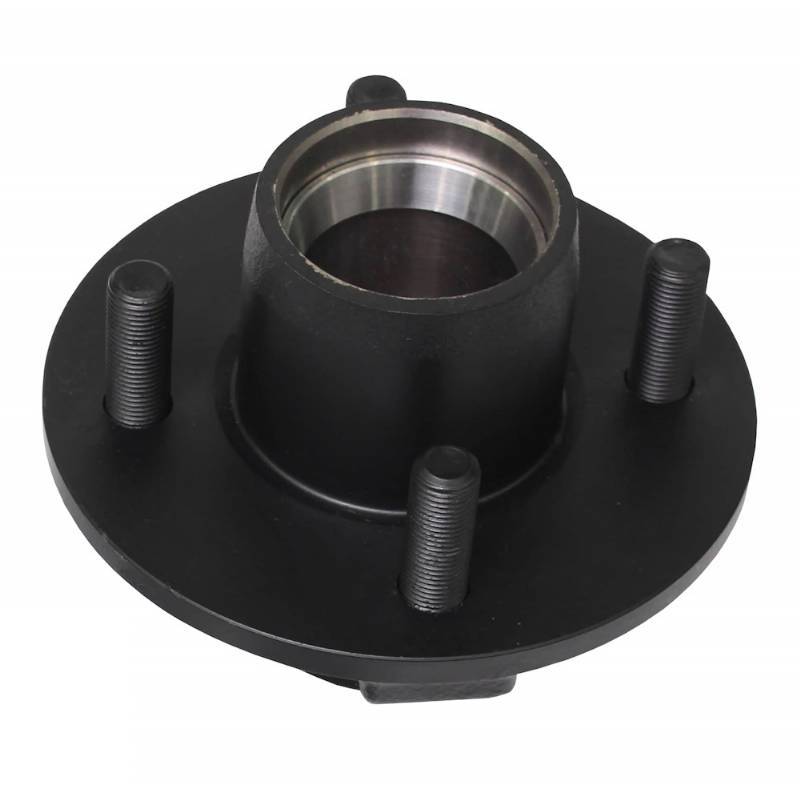

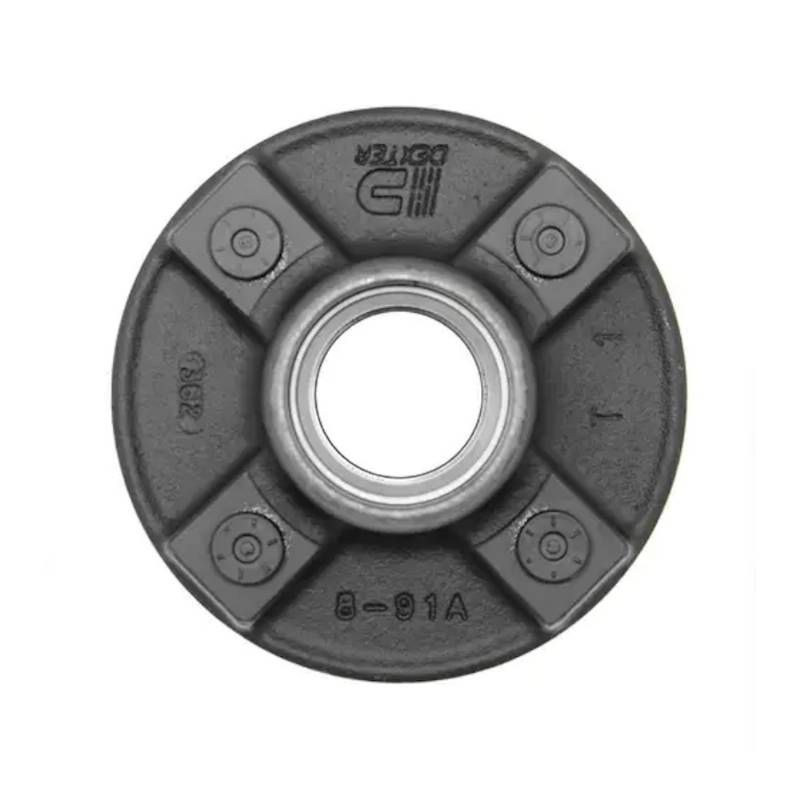

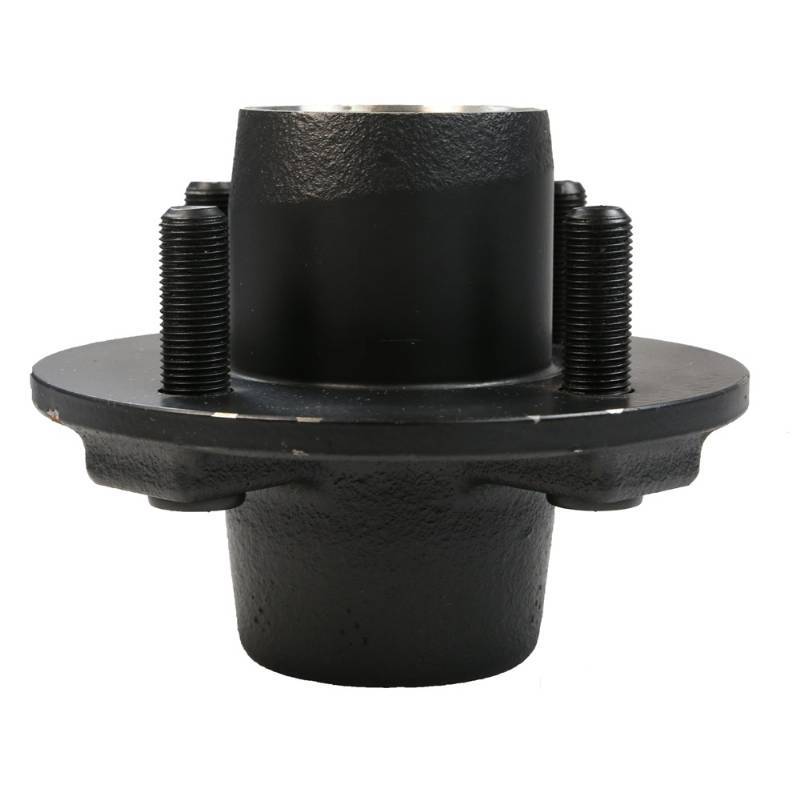

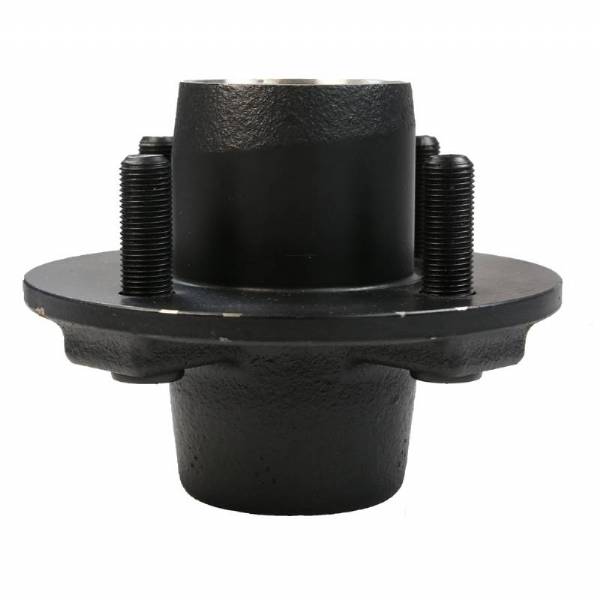

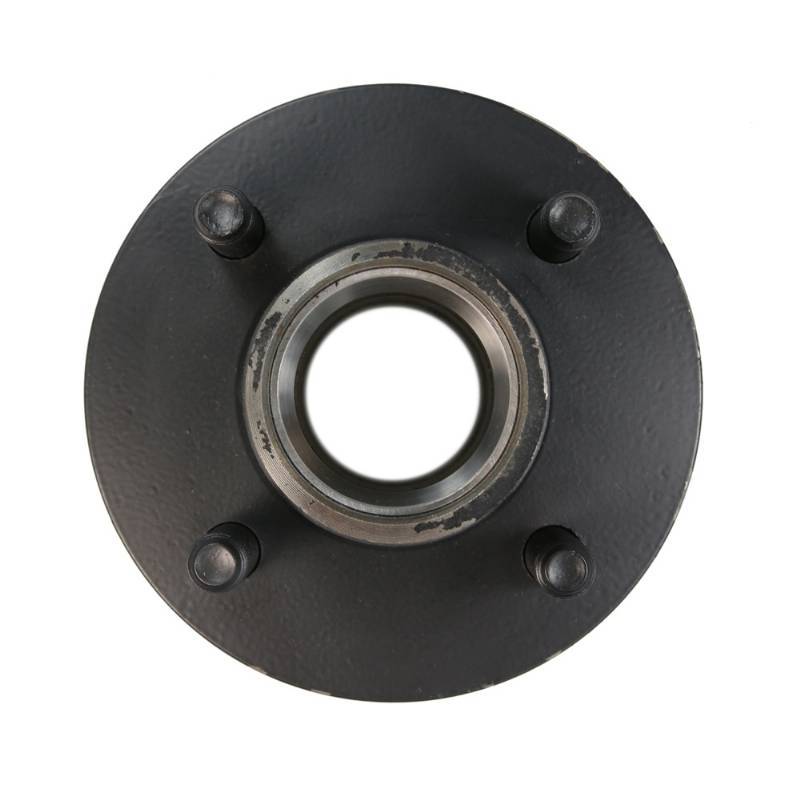

Dexter 8-091-5 idler hub fits 1250 lbs. to 2200 lbs. capacity axles and has a 4 on 4" bolt pattern. Compatible all with BT(1" bearing combination) or BTR(1-1/16" bearing combination) style E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands. This hub has a 5-1/2" diameter flange for use with 8", 10", and 12" trailer wheels.

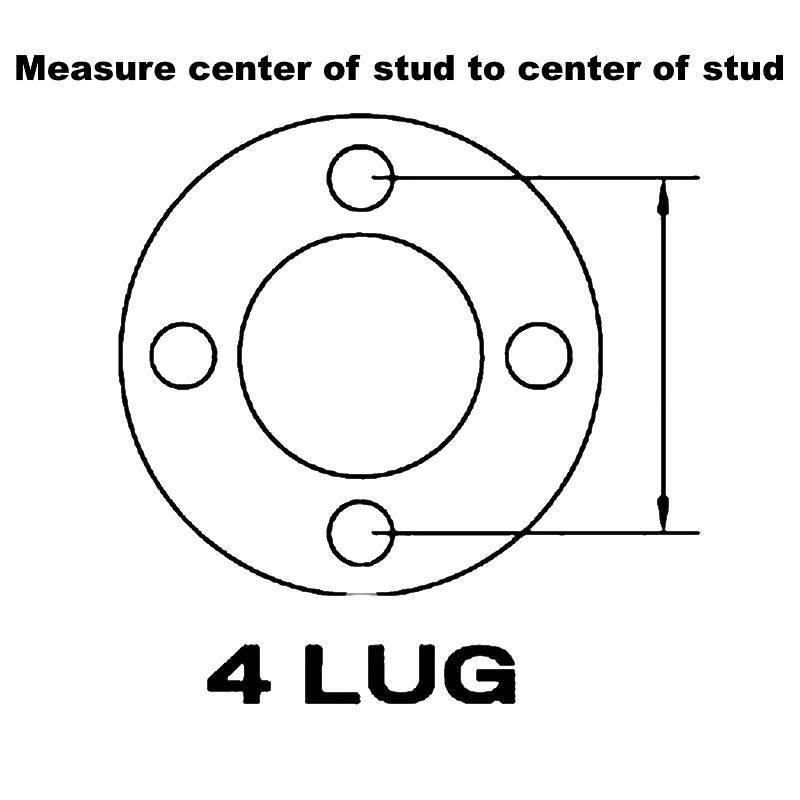

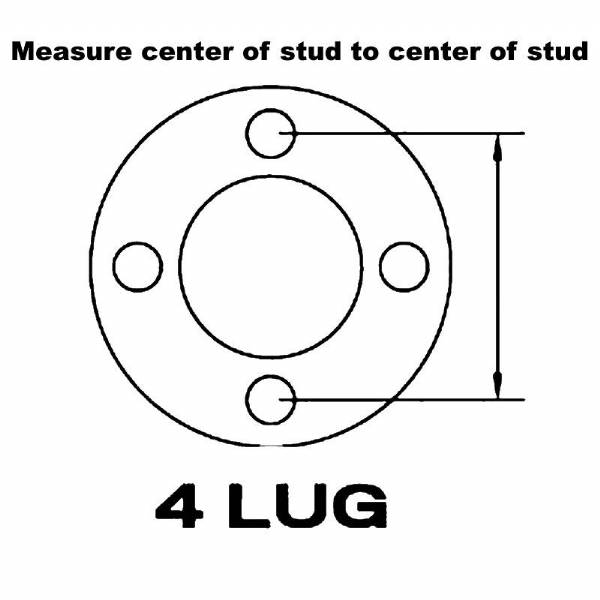

- 1 - Small face Idler hub with 4 on 4" lug bolt pattern (see image on how to measure lug spacing)
- 5-1/2" diameter flange
- 4-1/8" overall height
- 1/2"-20 thread pitch lug studs
- has a 1.98" bore diameter
- Rated 1100 lbs. capacity per side (bearing size dependent)
- 2 - L44610 bearing races (pre-installed)
This trailer idler hub is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
For use with 8", 10" or 12" wheels
Please note: This hub is not to be used on 13" or larger wheels.
