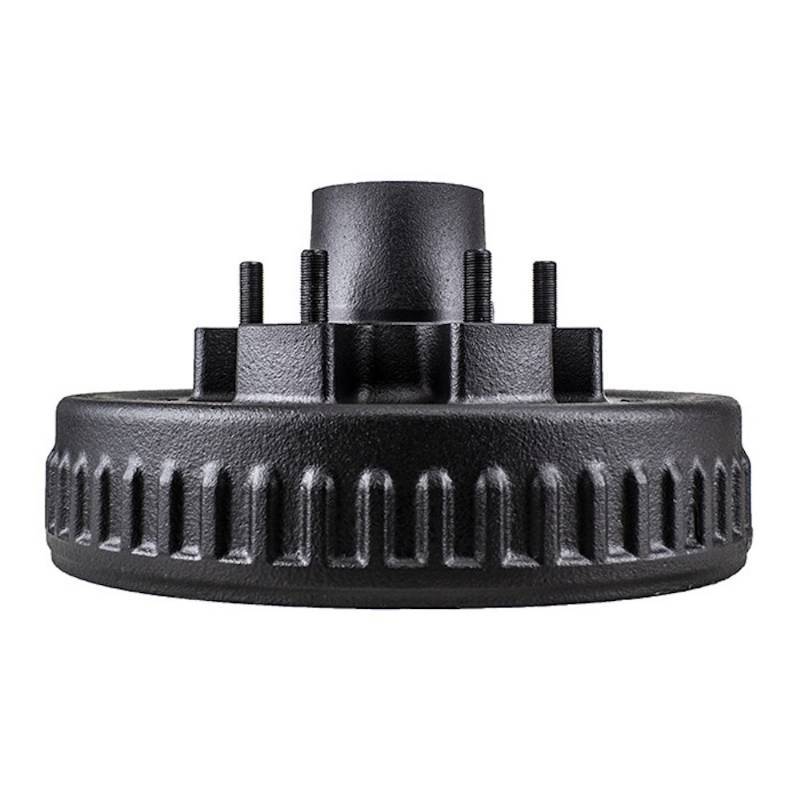

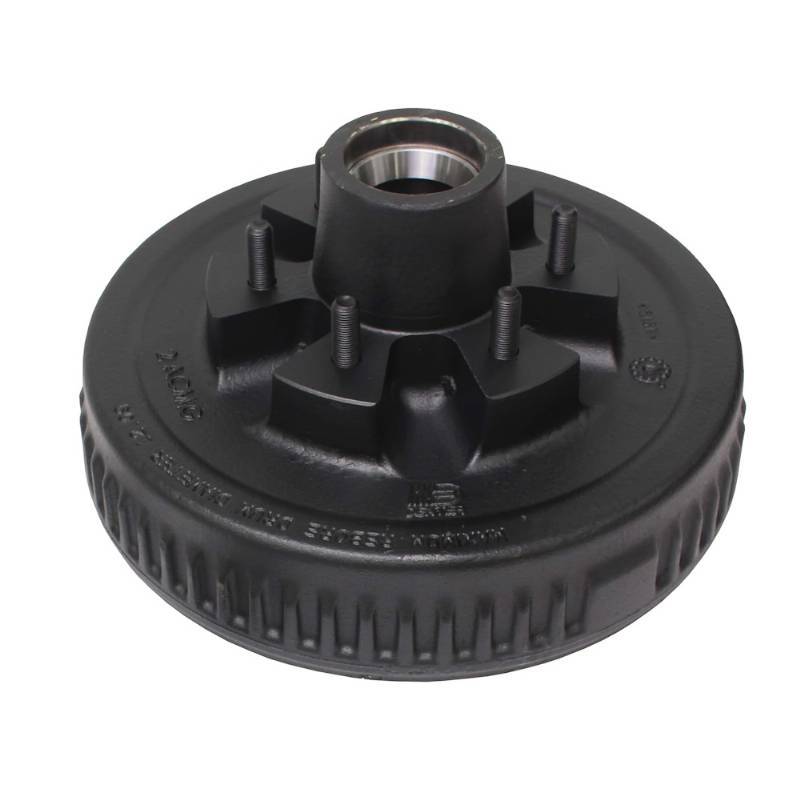

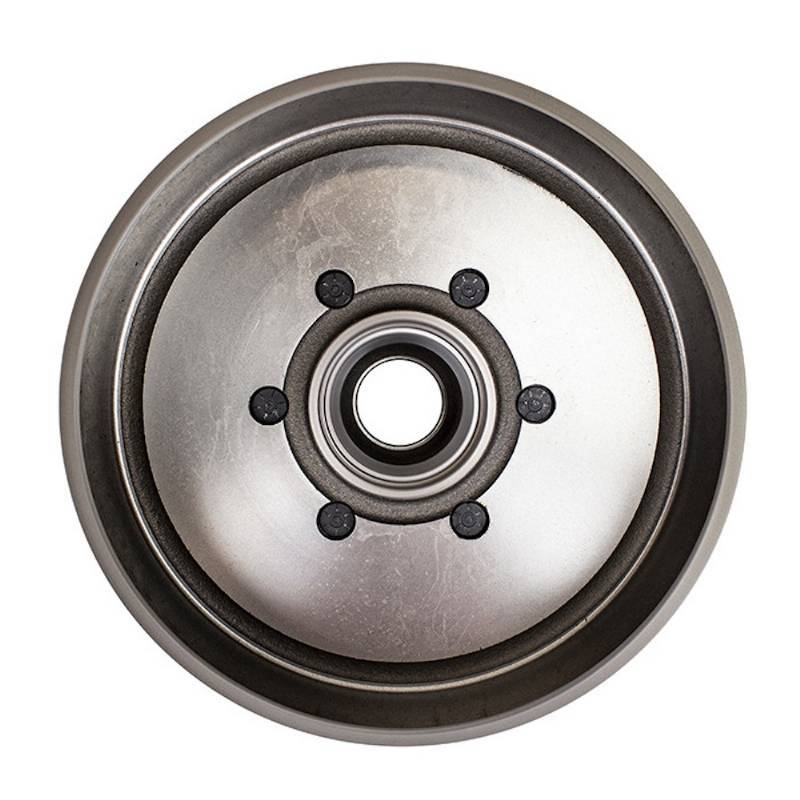

Dexter 8-201-5 12" hub and drum fits 5200 lbs. capacity axles and has a 6 on 5-1/2" bolt pattern. Compatible with electric and hydraulic drum brake systems. Compatible all with E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/4" inner diameter outer bearing and a 1-3/4" inner diameter inner bearing combination.

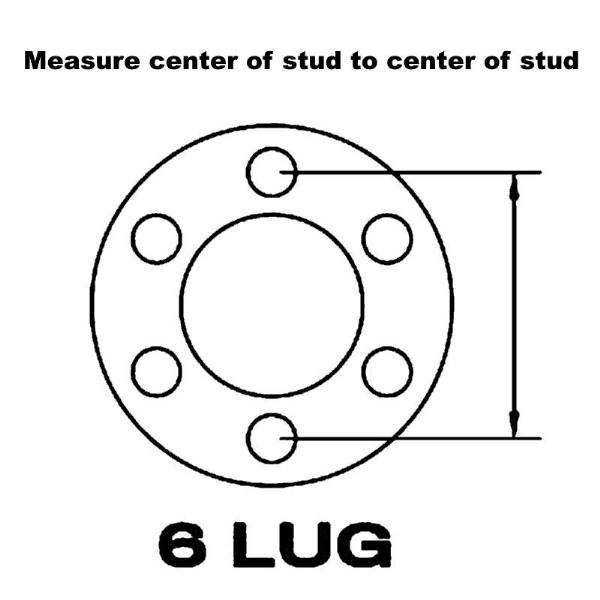

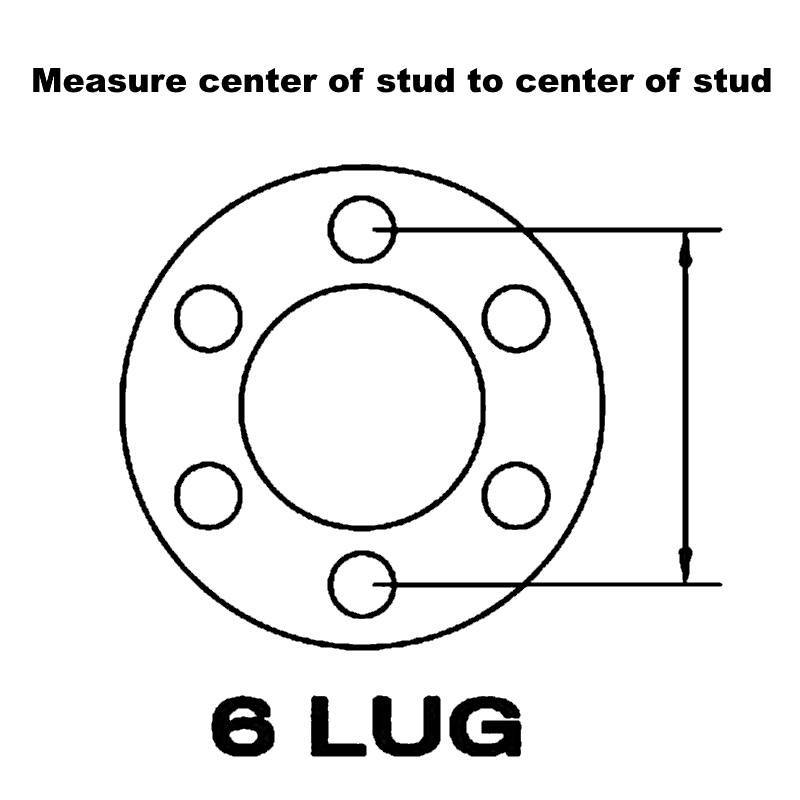

1 - Integrated hub-and-drum with 6 on 5-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 12" x 2" hydraulic and electric trailer brakes
- 1/2"-20 thread pitch lug studs
- Rated 2600 lbs. capacity per side
- 1 - LM67010 outer bearing cup race (pre-installed)
- 1 - 25520 inner bearing cup race (pre-installed)
- Works with LM67048 outer bearing cone and 25580 inner bearing cone (not included)
This trailer brake hub and drum is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
Note: 5200lb axles normally have an outer bearing number LM67048. Please verify you have this outer bearing number before ordering.
