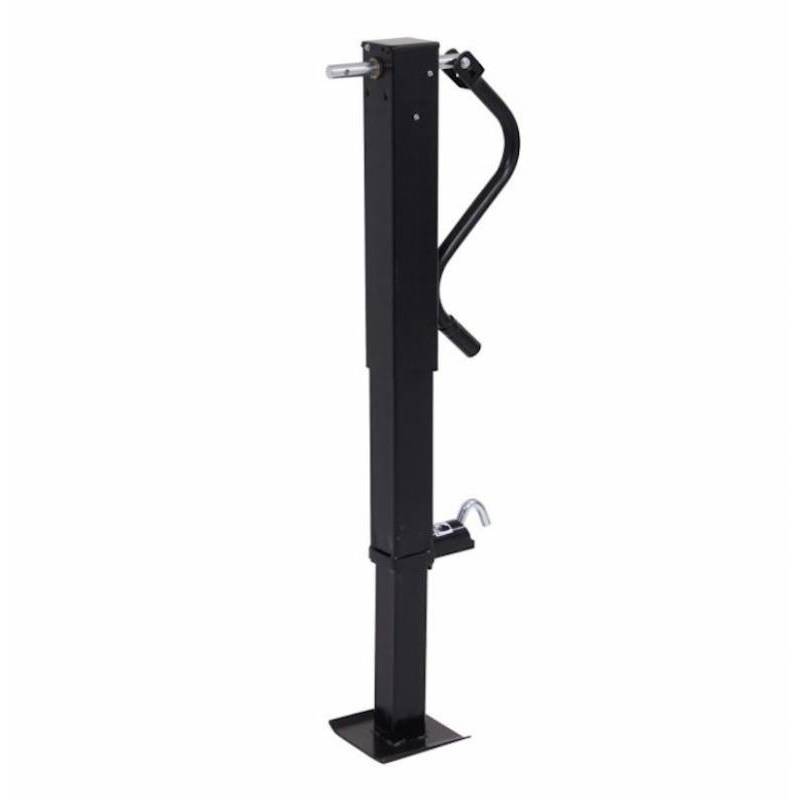

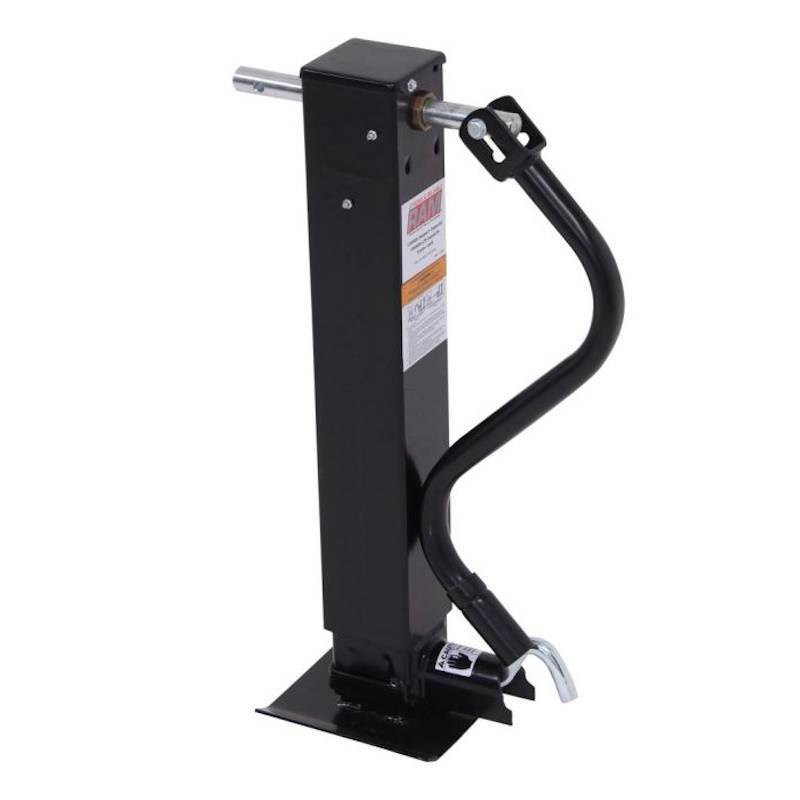

RAM Sidewind weld-on square trailer jack with drop leg. Rated for 10000 lbs. capacity lift and 12000 lbs. capacity supporting weight limits. Comes standard with a black painted outer tube and inner tube. Includes extendable drop leg with spring loaded return and is ideal for use with ag, industrial, commercial, and many other types of trailers that have a need for heavy lifting. Designed to welded directly to trailer frame. This jack is most commonly used on dump trailers and is ideal for improving ground clearance.
- 12000 lbs. Support Capacity / 10000 lbs. Lift Capacity
- Direct weld single speed side wind jack
- Durable exterior grade black finish on outer and inner tubes
- 4" square outer tube construction
- Grease zerks for easy greasing of jack

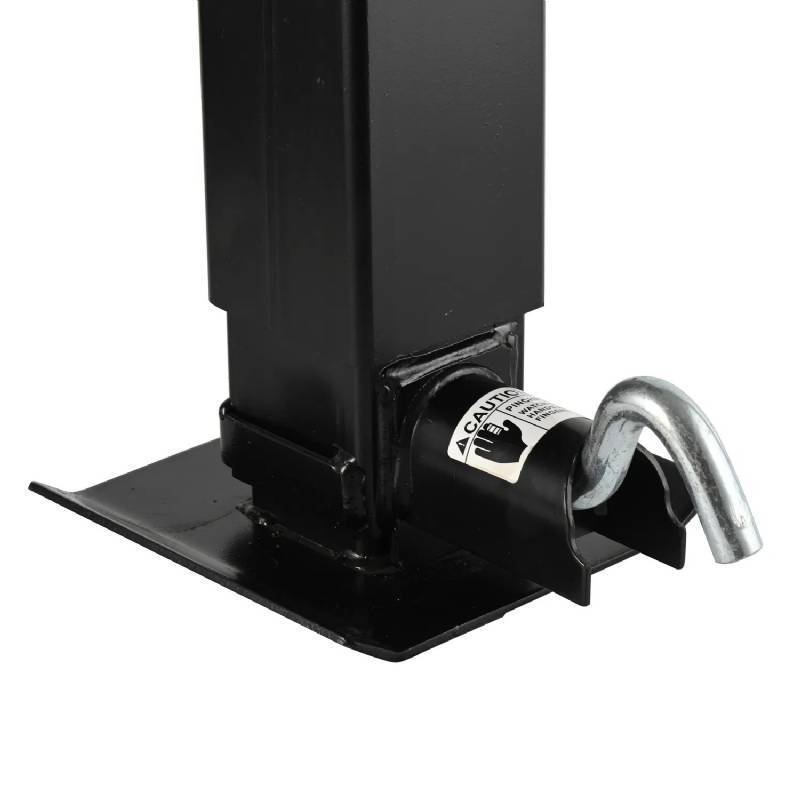

- Adjustable height bottom spring loaded return leg with 8" x 8" foot plate included

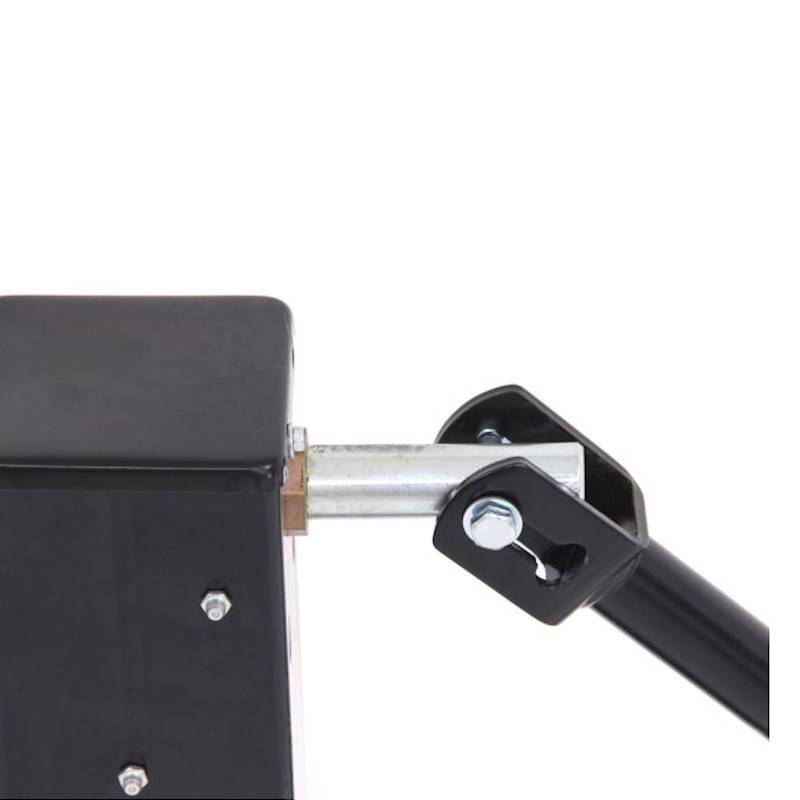

- Large octagon bushings on gear shaft for better function

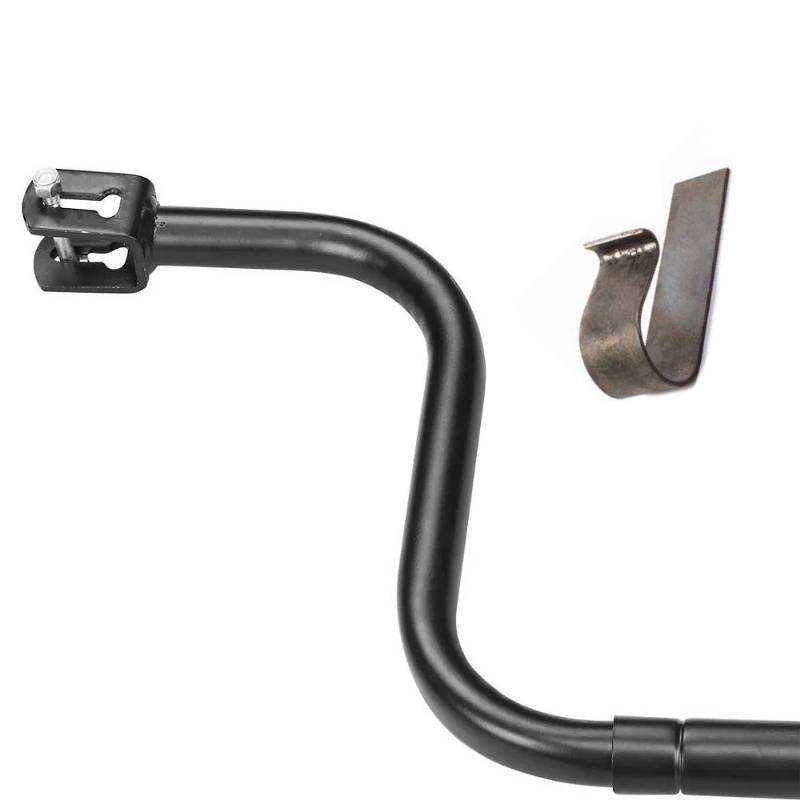

- Handle and clip included
- Intermediate leg extends 12-1/4"
- Drop leg extends up to 13-1/2"

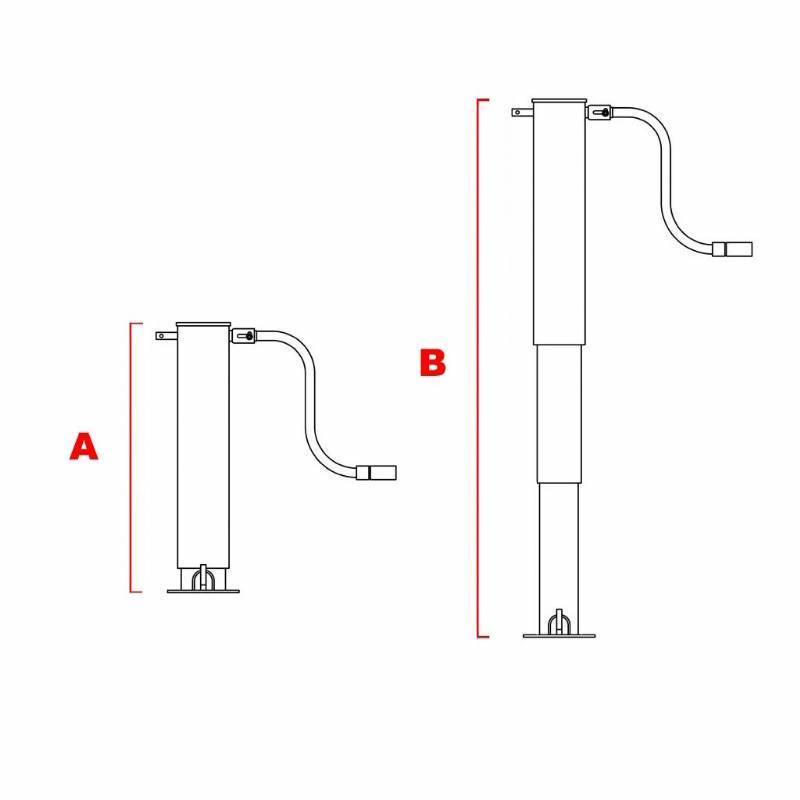

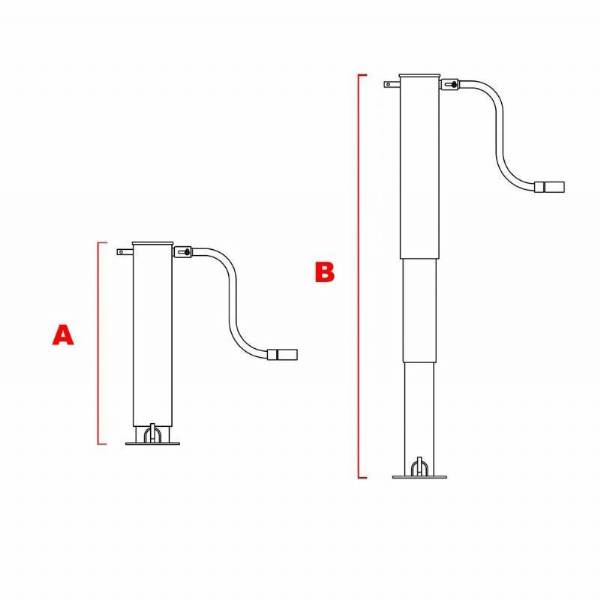

Dimensions see image
- (A) Retracted = 28"
- (B) Extended = 54"
