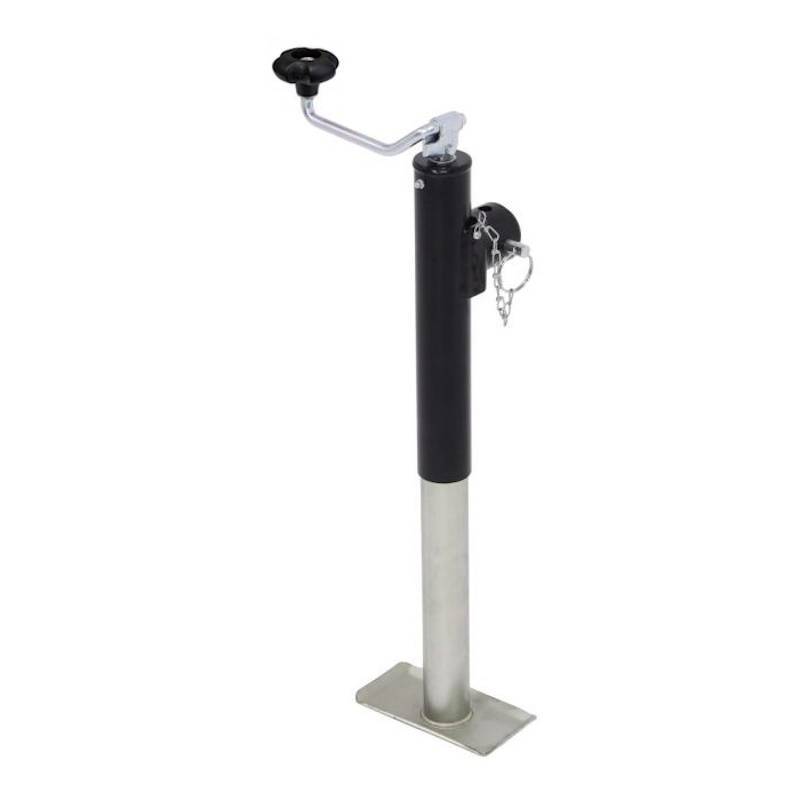

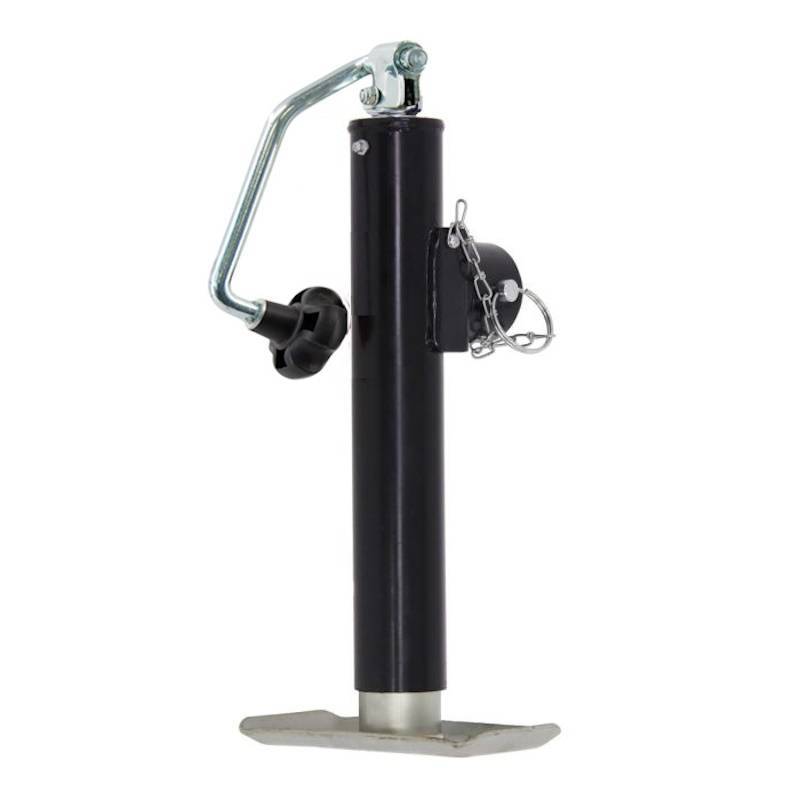

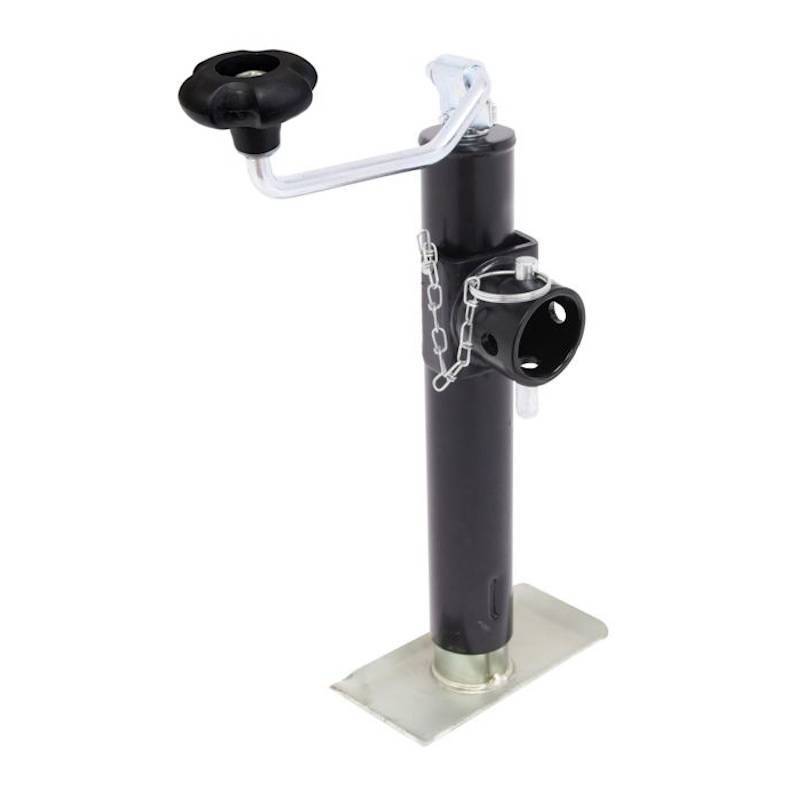

RAM Topwind pipe mount swivel trailer tongue jack comes with the mating pipe bracket for weld-on applications to side of trailer frame. Jack is ideal for use with ag, industrial, commercial, recreational, and many other types of utility trailers. Features a universal weld on pipe mounting base so if you are just replacing your tongue jack, you would not need to weld on the new bracket. Rated for 2000 lbs. capacity lift and 3000 lbs. capacity supporting weight limits.
- 3000 lbs. Support Capacity / 2000 lbs. Lift Capacity
- Comfortable claw knob handle to operate the jack
- Durable exterior grade black finish on outer tube
- Clear zinc finish on inner tube and foot

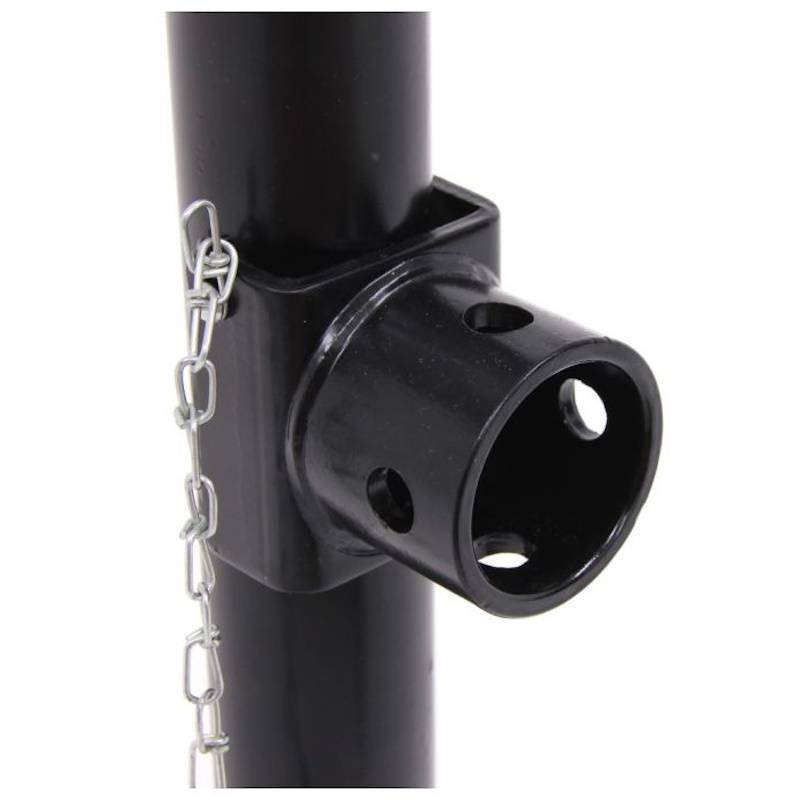

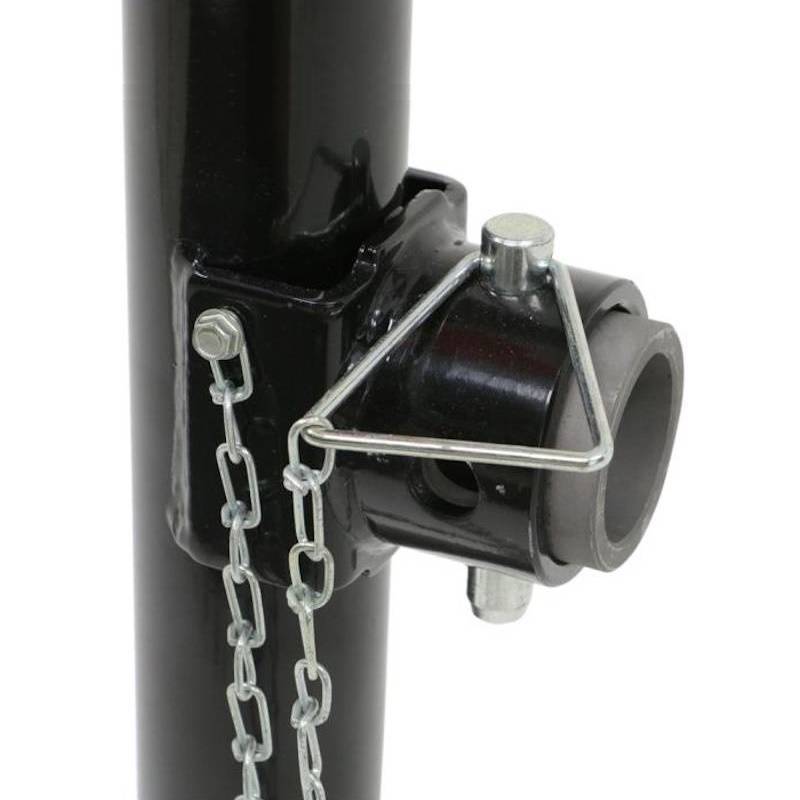

- 9/16" pin and lanyard assembly affixed to the jack to activate the swivel mechanism

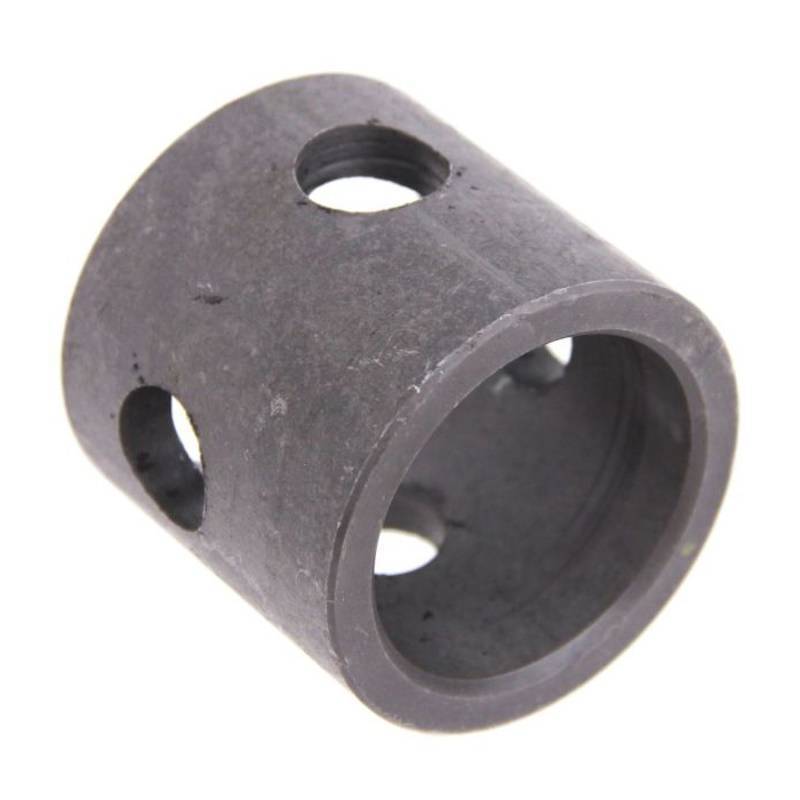

- Includes a 2" raw round weld on mating pipe
- Grease zerk for easy greasing of jack
- Deep seated snap ring for side load support and raw weld on bracket

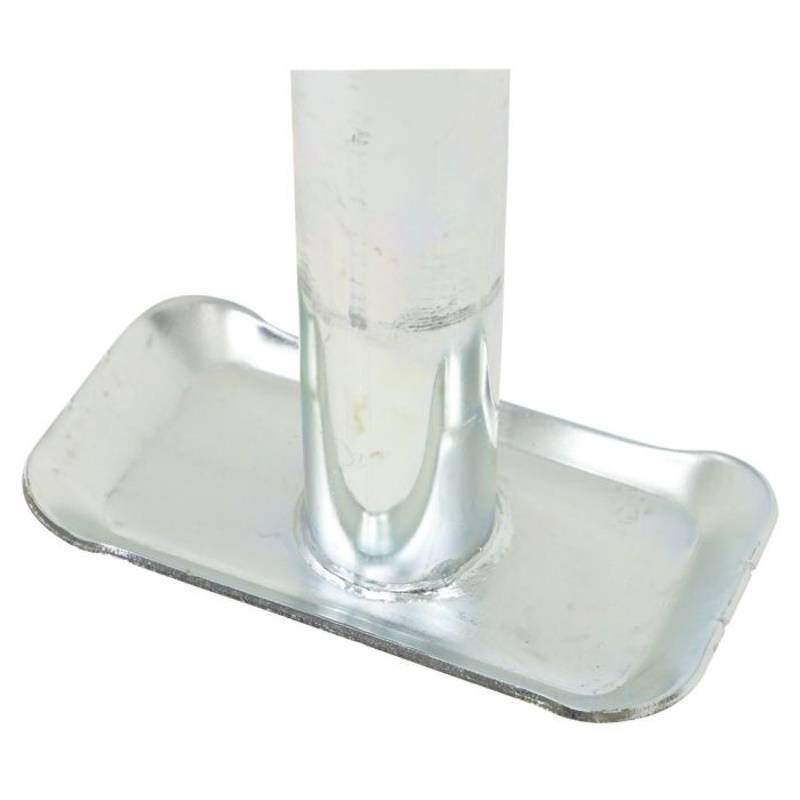

- 3-3/4" x 7-1/2" welded on durable zinc bottom foot for better stability
- Leg extends 10"

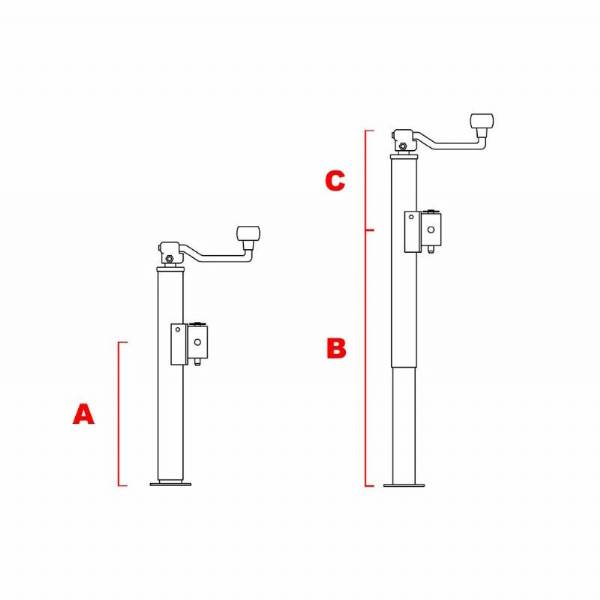

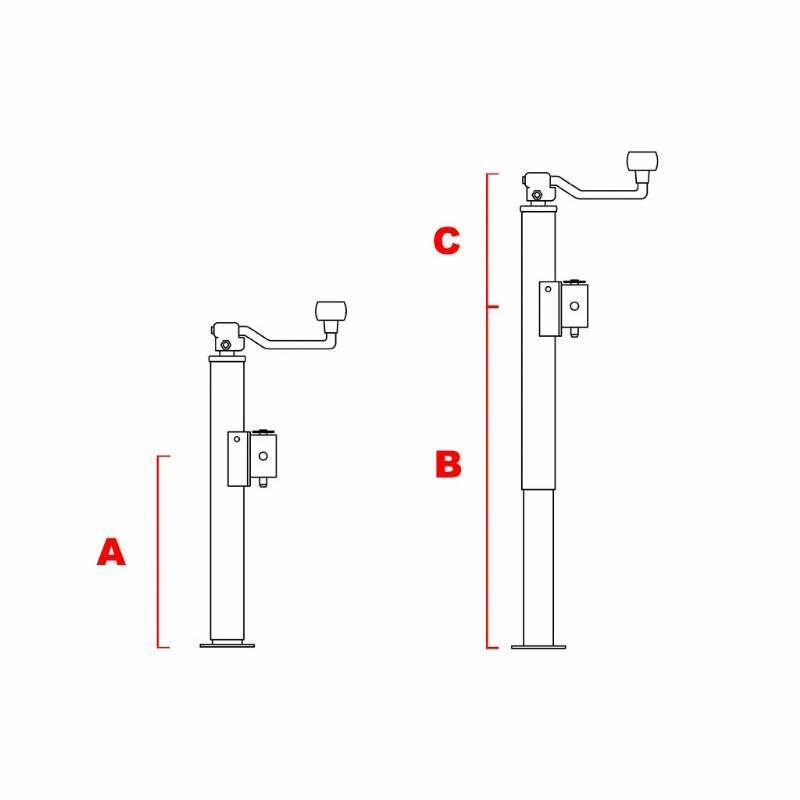

Dimensions see image
- (A) Retracted = 11-1/4"
- (B) Extended = 21-1/4"
- (C) Clearance = 5-1/2"
