Trailer Tech TT35-545DK pre greased 10" hub and drum kit has a 5 on 4-1/2" bolt pattern and fits 2900 lbs. to 3500 lbs. capacity axles. Compatible with electric and hydraulic drum brake systems. No need to assemble, this hub drum already has the bearings greased with Mobile GREASE lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Comes with lubeable style dust cap that is compatible with all E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/16" inner diameter outer bearing and a 1-3/8" inner diameter inner bearing combination
Complete pre-greased fully assembled boxed trailer 10" drum kit for 1 wheel.

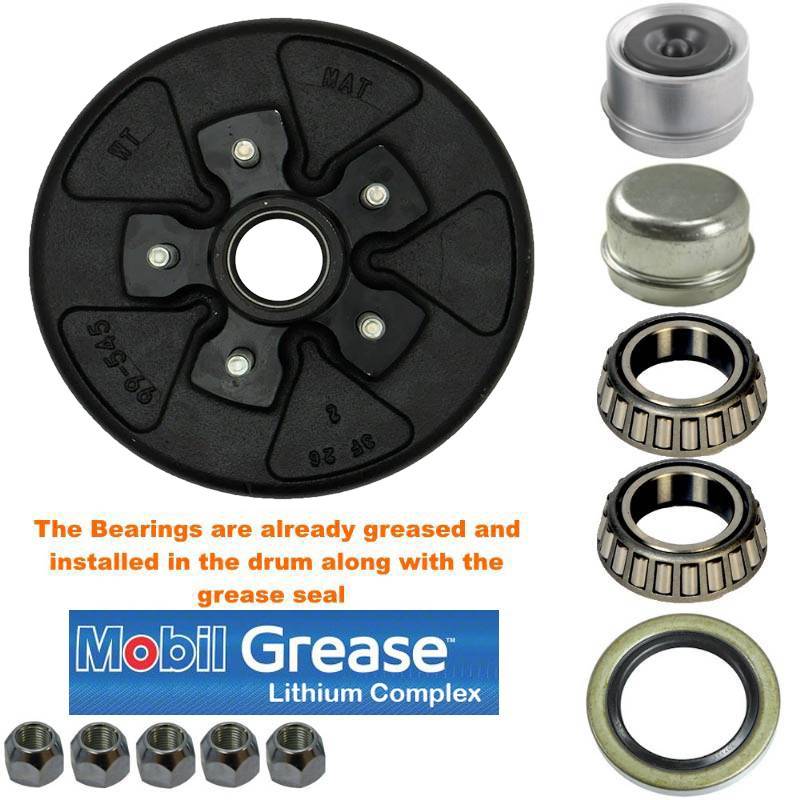

Pre-greased fully assembled kit Includes:

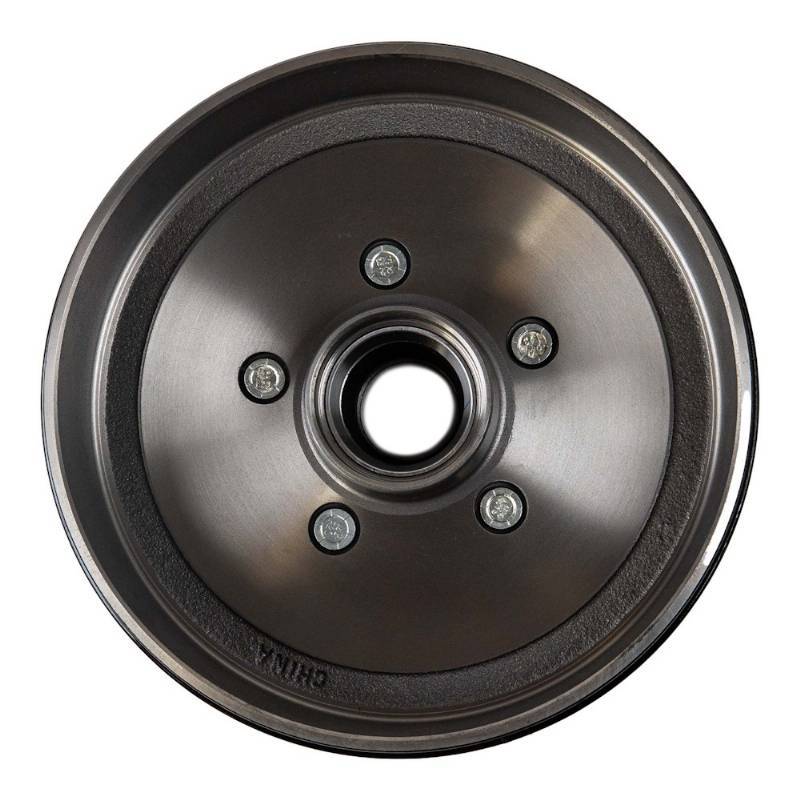

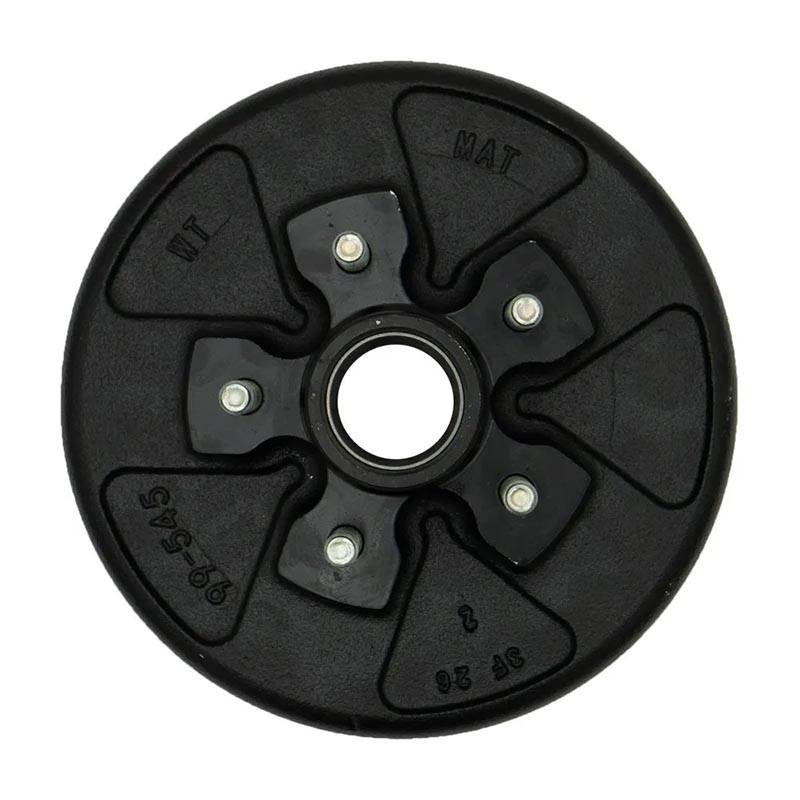

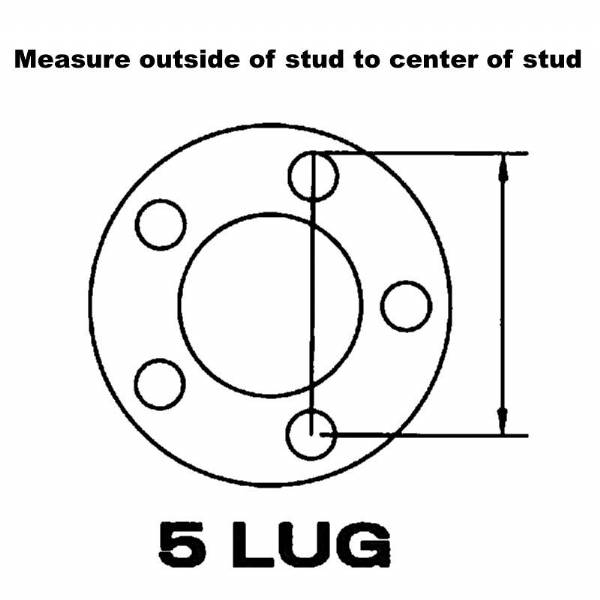

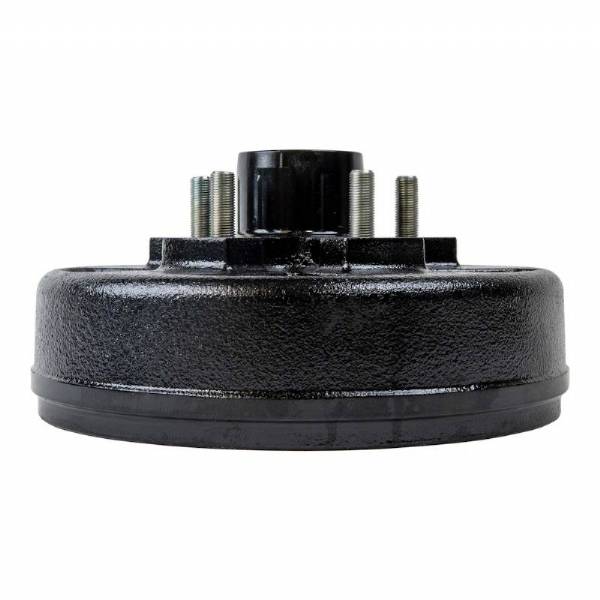

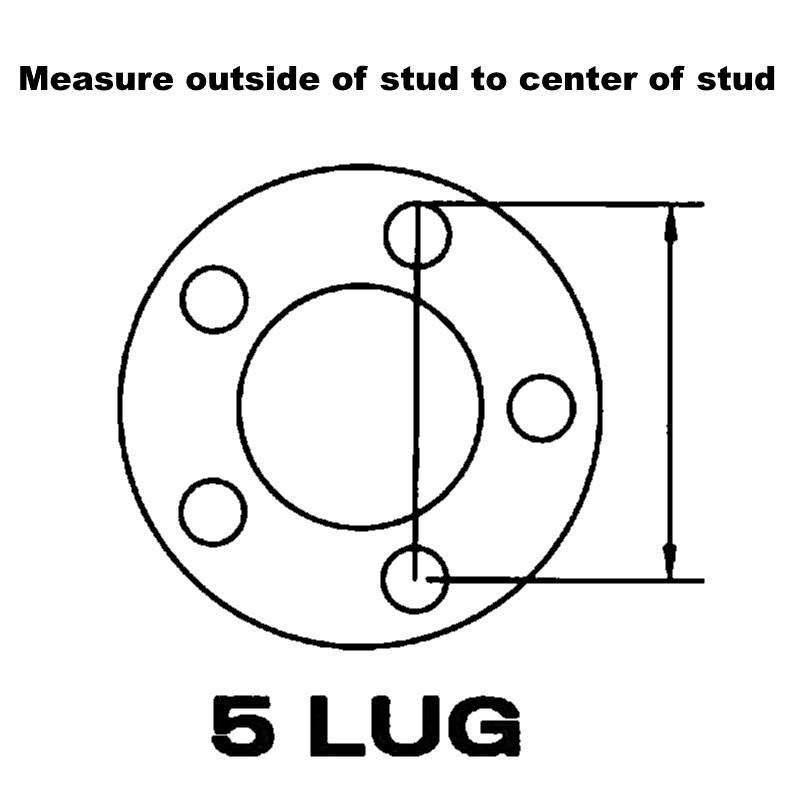

- 1 - 99-545-02 Integrated hub-and-drum with 5 on 4-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 10" x 2-1/4" hydraulic and electric trailer brakes
- 1/2"-20 thread pitch lug studs
- Rated 1750 lbs. capacity per side
- 1 - L44649 bearing cone (pre-greased and pre-installed)
- 1-1/16" (1.063") inner diameter
- 1 - L68149 bearing cone (pre-greased and pre-installed)
- 1-3/8" (1.378") inner diameter
- 1 - L44610 outer bearing cup race (pre-installed)
- 1 - L68111 inner bearing cup race (pre-installed)
- 1 - SL173 Grease seal
- 1.719" inner diameter
- 2.565" outer diameter
- 1 - 21-41 1.98" Outer diameter lube style cap
- 1 - 85-1 Rubber plug
- 1 - 5-101 Tang washer
- 1 - 5-23 "D-Style" washer
- 1 - 5-27 1" Round washer
- 1 - 6-1 1" Castle nut
- 1 - 19-2 cotter pin
- 5 - 6-80 1/2"-20 thread pitch zinc plated 60 degree coned lug nuts
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
