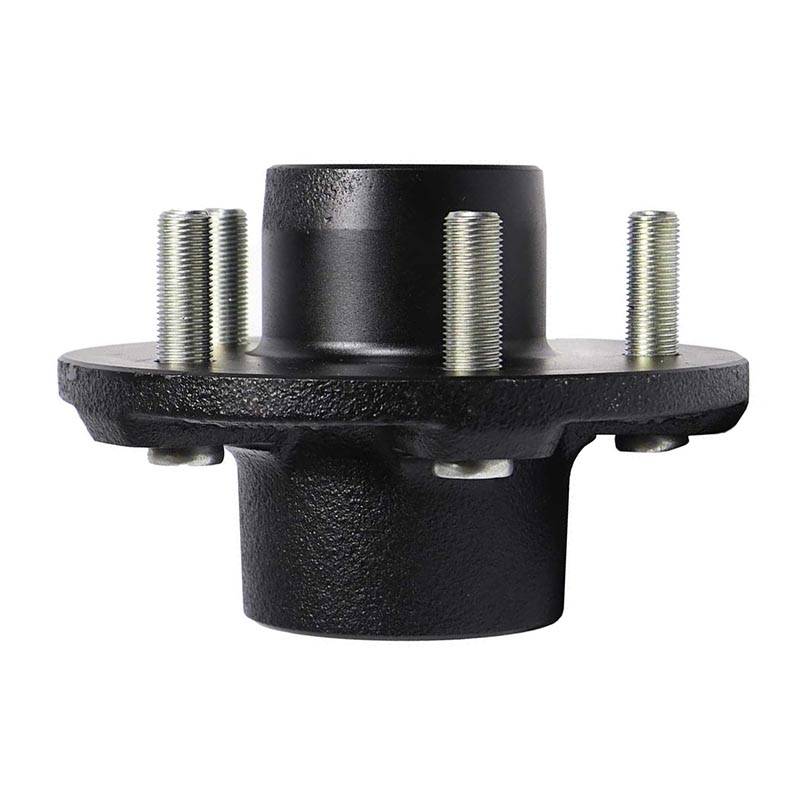

Trailer Tech TT35-545HK pre greased idler hub kit fits 2990 lbs. to 3500 lbs. capacity axles and has a 5 on 4-1/2" bolt pattern. No need to assemble, this idler hub already has the bearings greased with Mobile GREASE lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Compatible all with 1-1/16" inner diameter outer bearing and a 1-3/8" inner diameter inner bearing combinations and comes with lubeable style dust cap that is interchangeable with all E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands.
Complete pre-greased fully assembled boxed trailer idler hub kit for 1 wheel.

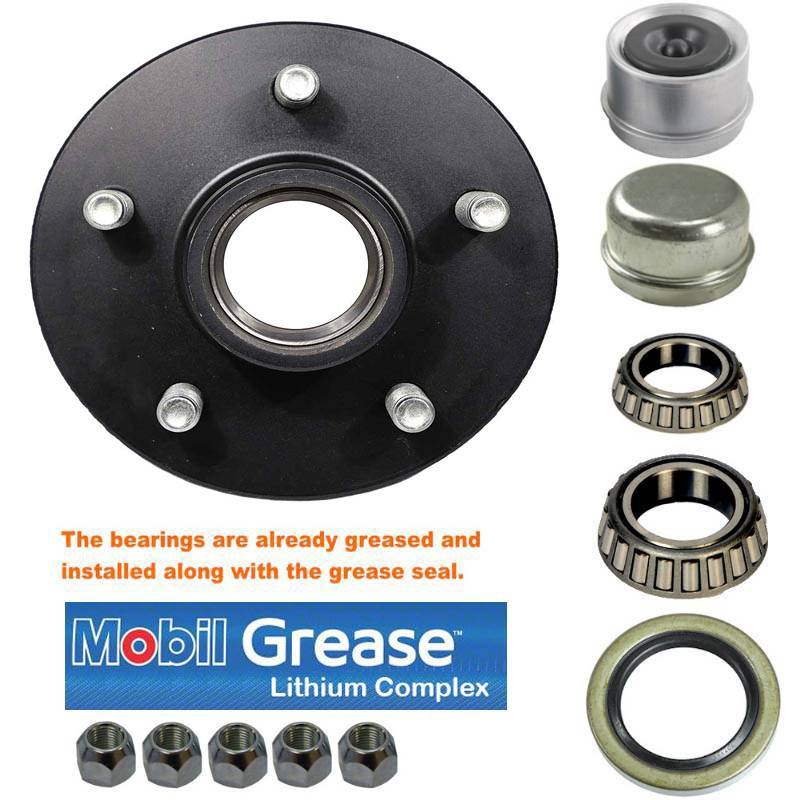

Pre-greased fully assembled kit Includes:

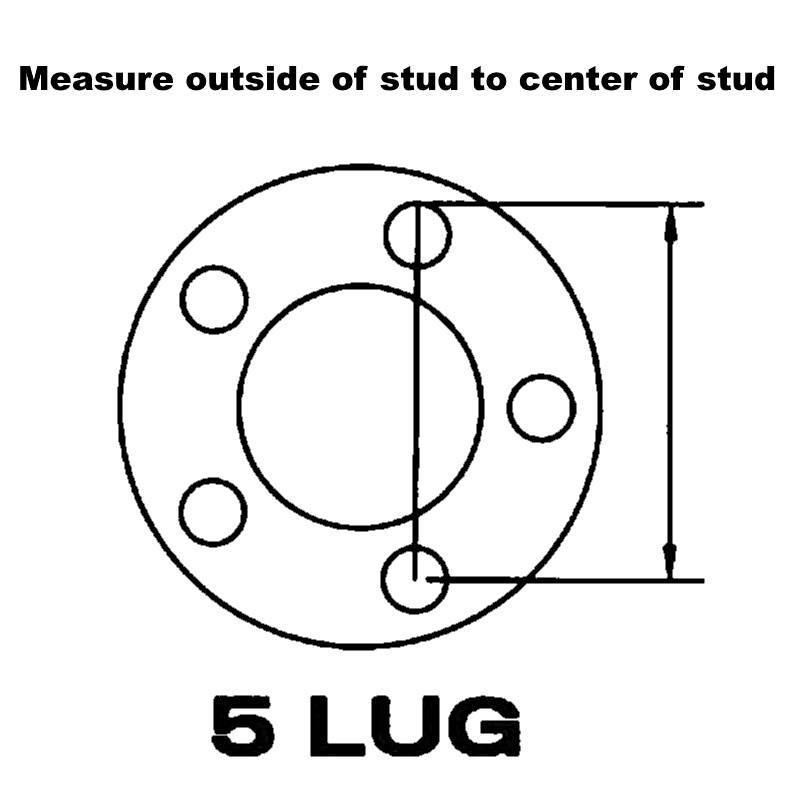

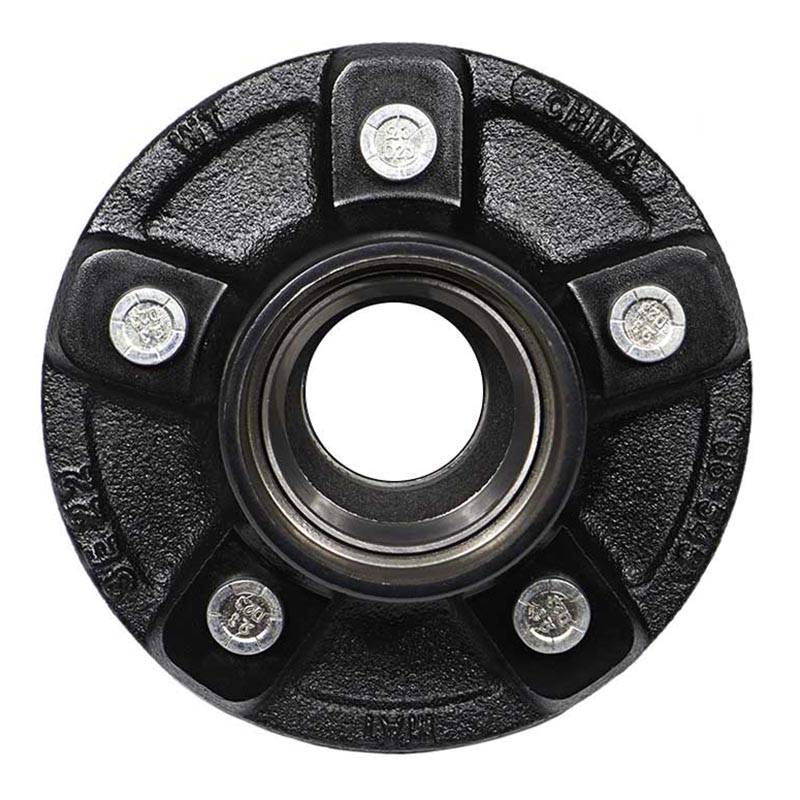

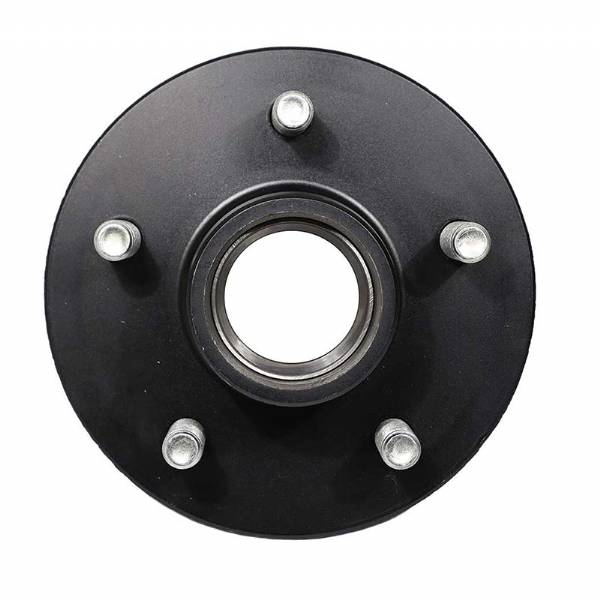

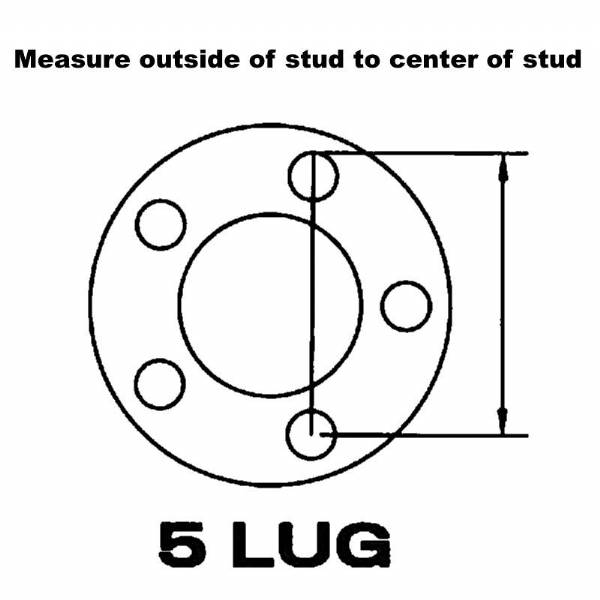

- 1 - 88-545-02 Idler hub with 5 on 4-1/2" lug bolt pattern (see image on how to measure lug spacing)
- 6-1/4" diameter large flange (Standard)
- 4-1/8" overall height
- 1/2"-20 thread pitch lug studs
- Rated 1750 lbs. capacity per side
- 1 - L44649 bearing cone (pre-greased and pre-installed)
- 1-1/16" (1.063") inner diameter
- 1 - L68149 bearing
- 1-3/8" (1.378") inner diameter
- 1 - L44610 outer bearing cup race (pre-installed)
- 1 - L68111 inner bearing race (pre-installed)
- 1 - SL173 Grease seal
- 1.719" inner diameter
- 2.565" outer diameter
- 1 - 21-41 1.98" Outer diameter lube style cap
- 1 - 85-1 Rubber plug
- 1 - 5-101 Tang washer
- 1 - 5-23 "D-Style" washer
- 1 - 5-27 1" Round washer
- 1 - 6-1 1" Castle nut
- 1 - 19-2 cotter pin
- 5 - 6-80 1/2"-20 thread pitch zinc plated 60 degree coned lug nuts
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
