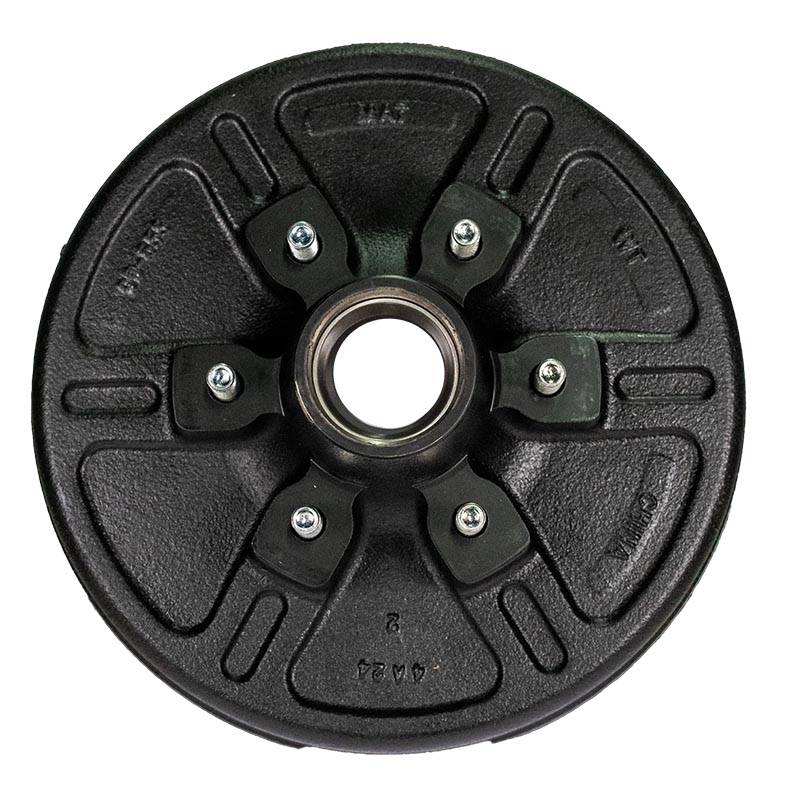

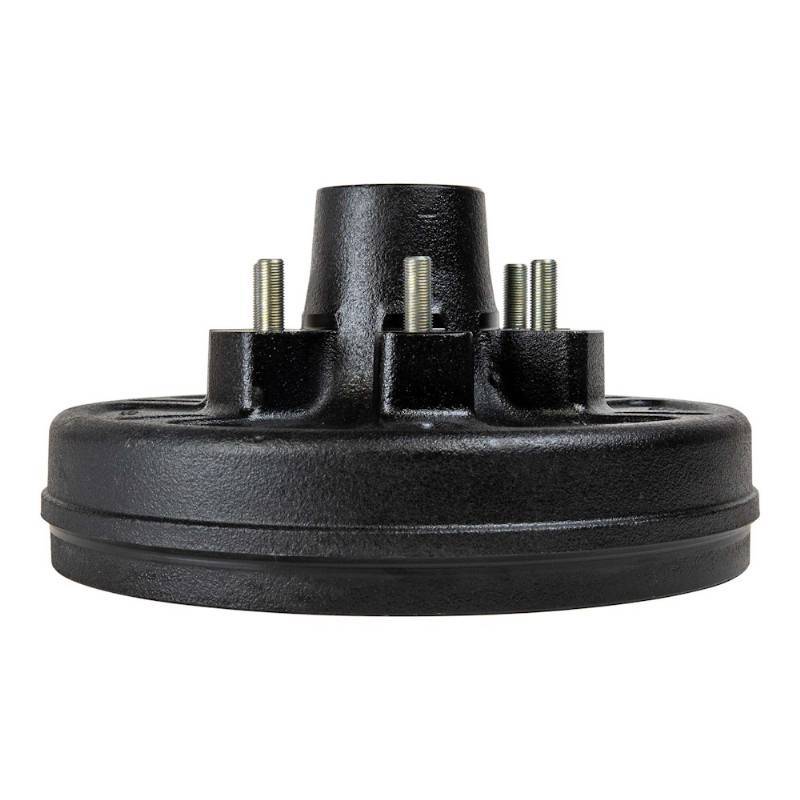

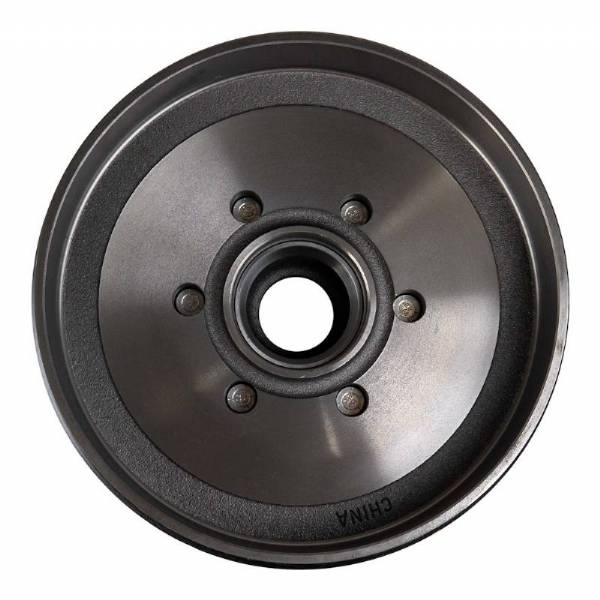

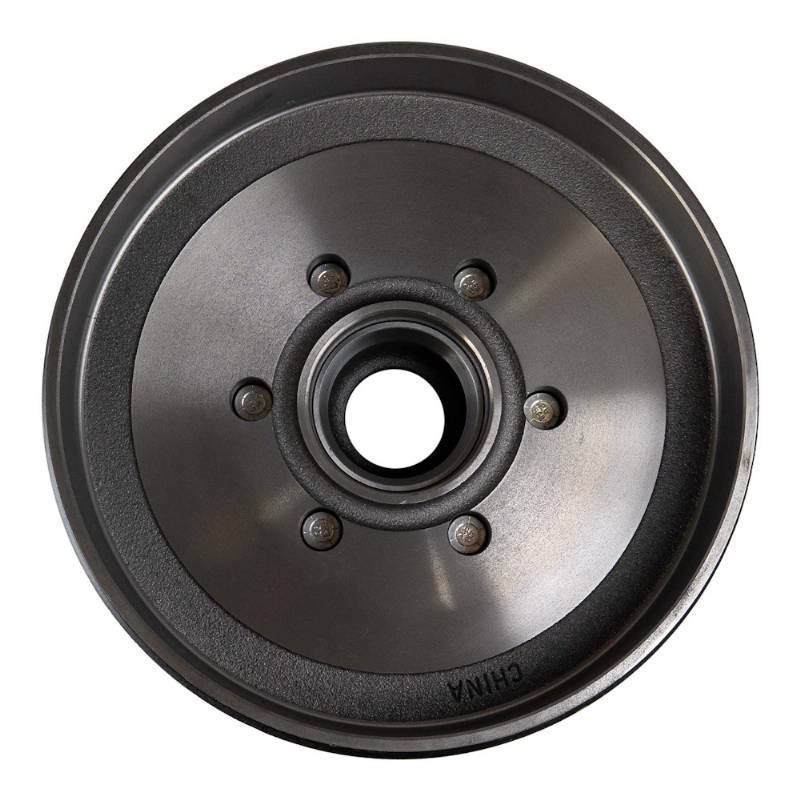

Trailer Tech TT6-655DK pre greased 12" hub and drum kit has a 6 on 5-1/2" bolt pattern and fits 5000 lbs. and 6000 lbs. capacity axles. Compatible with electric and hydraulic drum brake systems. No need to assemble, this hub drum already has the bearings greased with Mobile GREASE lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Comes with lubeable style dust cap that is interchangeable with all E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/4" inner diameter outer bearing and a 1-3/4" inner diameter inner bearing combination

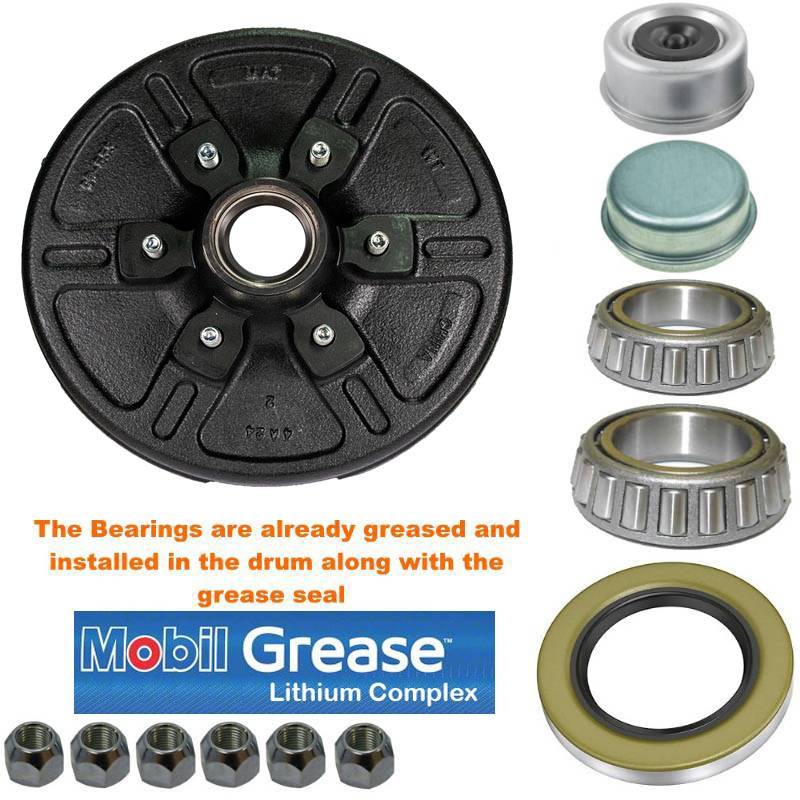

Complete pre-greased fully assembled boxed trailer 12" drum kit for 1 wheel.
Pre-greased fully assembled kit Includes:

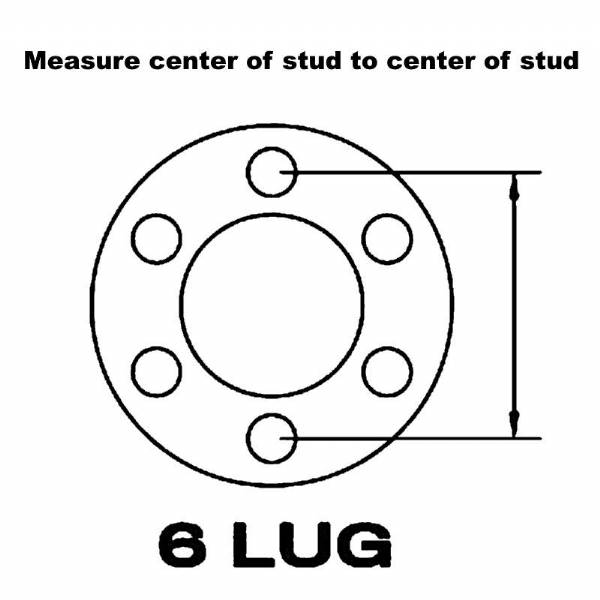

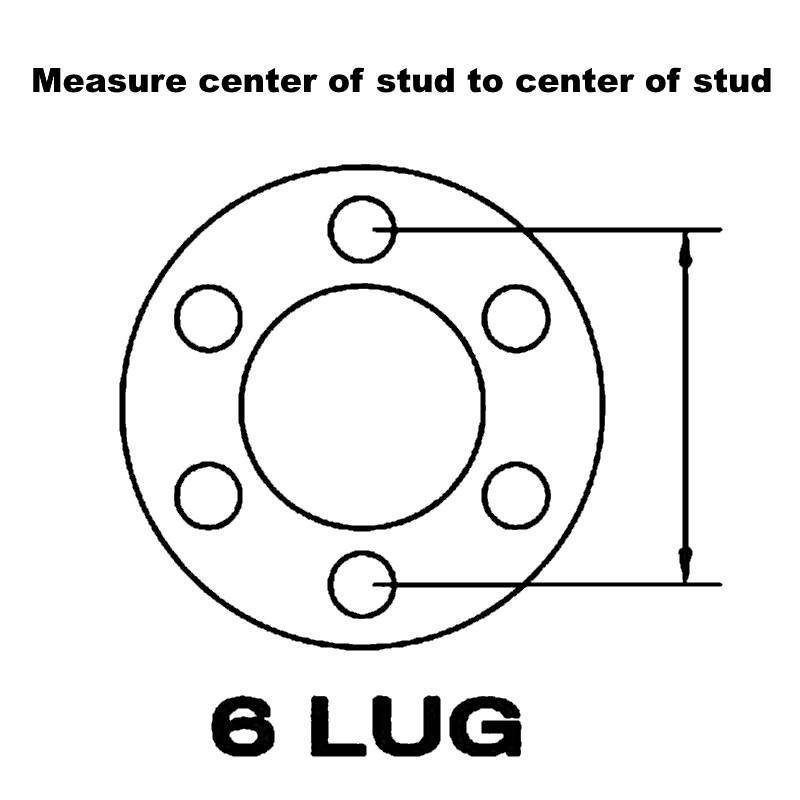

- 1 - 99-865-02 Integrated hub-and-drum with 6 on 5-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 12" x 2" hydraulic and electric trailer brakes
- 1/2"-20 thread pitch lug studs
- Rated 3000 lbs. capacity per side
- 1 - 15123 bearing cone (pre-greased and pre-installed)
- 1-1/4" (1.250") inner diameter
- 1 - 25580 bearing cone (pre-greased and pre-installed)
- 1-3/4" (1.750") inner diameter
- 1 - 15245 outer bearing cup race (pre-installed)
- 1 - 25520 inner bearing cup race (pre-installed)
- 1 - SL225-1 Grease seal
- 2.250" inner diameter
- 3.376" outer diameter
- 1 - 21-42 2.44" outer diameter lube style cap
- 1 - 85-1 Rubber plug
- 1 - 5-101 Tang washer
- 1 - 5-23 "D-Style" washer
- 1 - 5-27 1" Round washer
- 1 - 6-1 1" Castle nut
- 1 - 19-2 cotter pin
- 6 - 6-80 1/2"-20 thread pitch zinc plated 60 degree coned lug nuts
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
Note: 5000lb and 5200lb axles normally have an outer bearing number LM67048 which is the same 1.250" inner diameter that this drum kit 15123 bearing uses. The difference is the outer bore of the drum but all the parts in this kit will still work on the axle beam.
