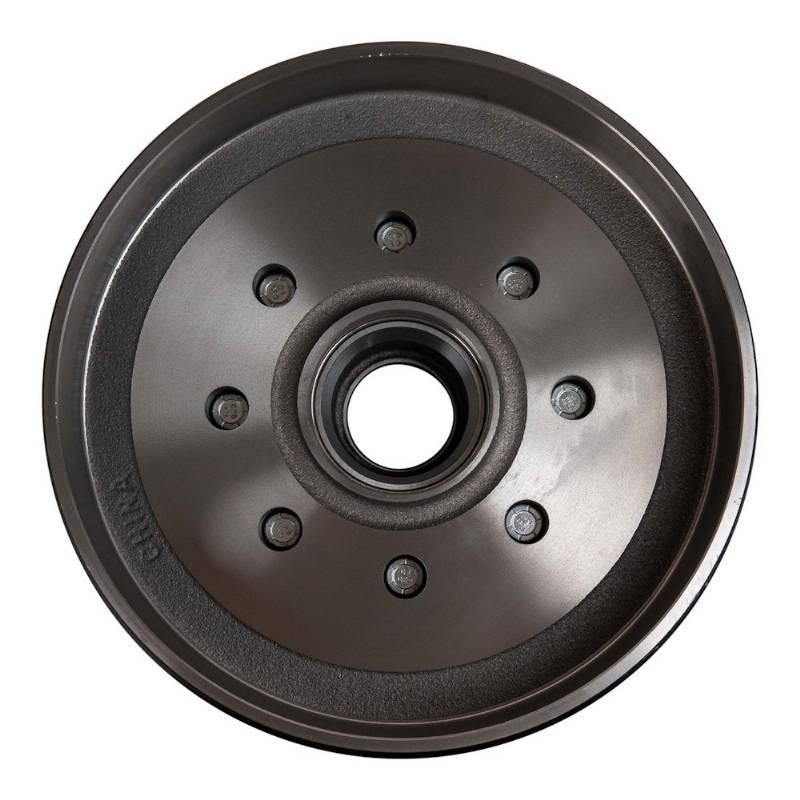

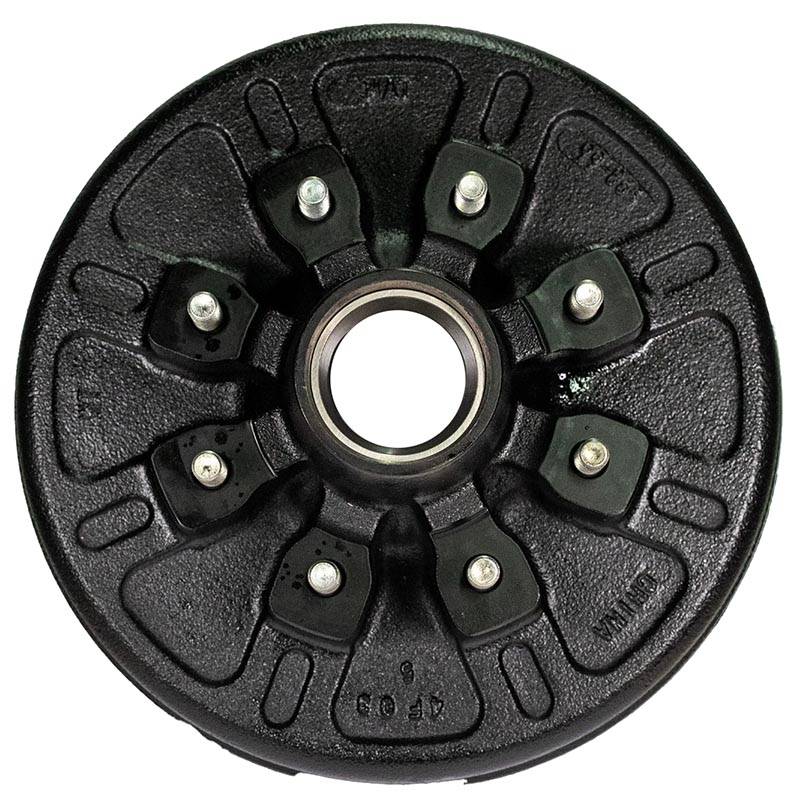

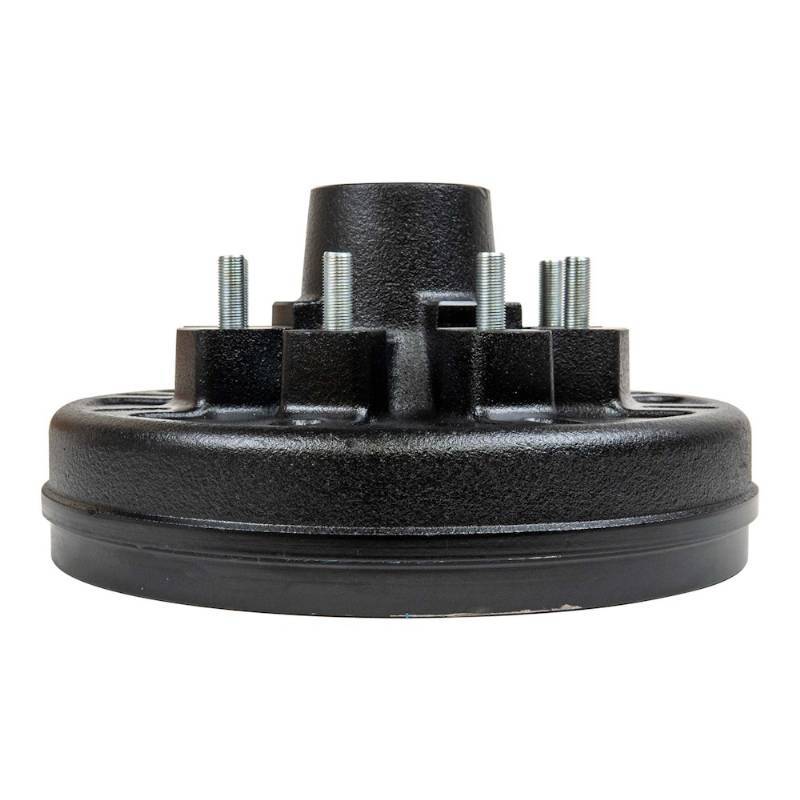

Trailer Tech TT7-865-12DK pre greased 12" hub and drum kit has a 8 on 6-1/2" bolt pattern and fits 6000 lbs. and 7000 lbs. capacity axles using 1/2" lug studs. Compatible with electric and hydraulic drum brake systems. No need to assemble, this hub drum already has the bearings greased with a lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Comes with lube-able style dust cap that is compatible all with E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/4" inner diameter outer bearing and a 1-3/4" inner diameter inner bearing combination
Complete pre-greased fully assembled boxed trailer 12" drum kit for 1 wheel.
Pre-greased fully assembled kit Includes:

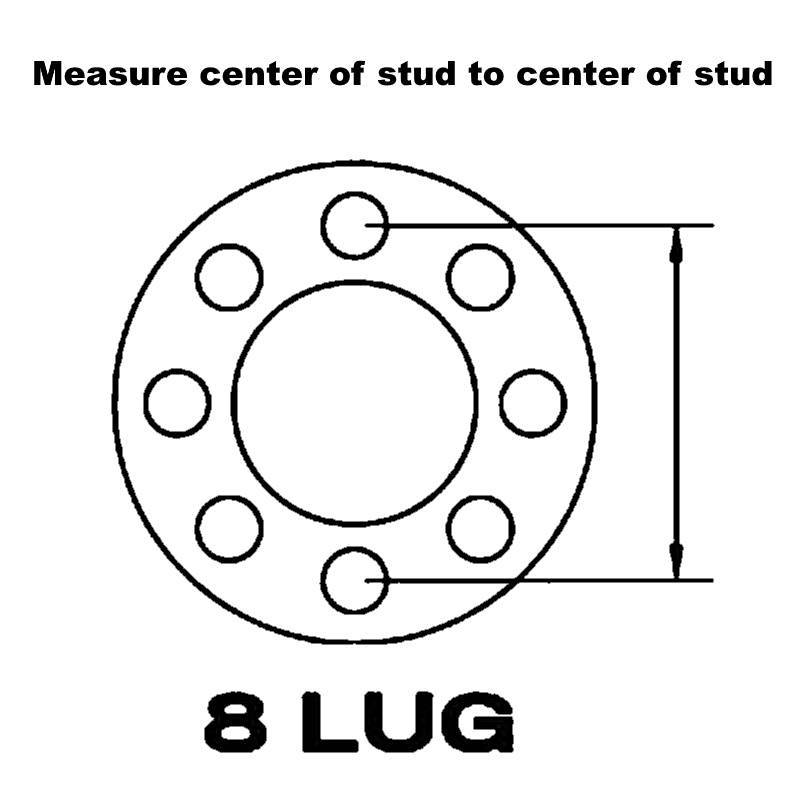

- 1 - 99-865-02 Integrated hub-and-drum with 8 on 6-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 12" x 2" hydraulic and electric trailer brakes
- 1/2"-20 thread pitch lug studs
- Rated 3500 lbs. capacity per side
- 1 - 14125A bearing cone (pre-greased and pre-installed)
- 1-1/4" (1.250") inner diameter
- 1 - 25580 bearing cone (pre-greased and pre-installed)
- 1-3/4" (1.750") inner diameter
- 1 - 14276 outer bearing cup race (pre-installed)
- 1 - 25520 inner bearing cup race (pre-installed)
- 1 - SL225-1 Grease seal
- 2.250" inner diameter
- 3.376" outer diameter
- 1 - 21-43 2.72" outer diameter lube style cap
- 1 - 85-1 Rubber plug
- 1 - 5-101 Tang washer
- 1 - 5-23 "D-Style" washer
- 1 - 5-27 1" Round washer
- 1 - 6-1 1" Castle nut
- 1 - 19-2 cotter pin
- 8 - 6-80 1/2"-20 thread pitch zinc plated 60 degree coned lug nuts
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
