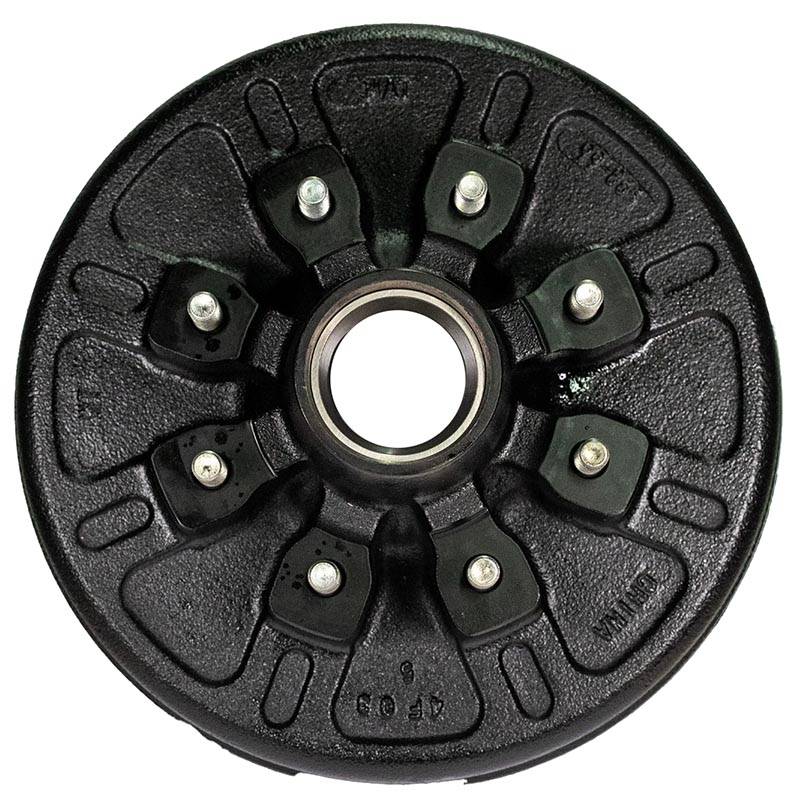

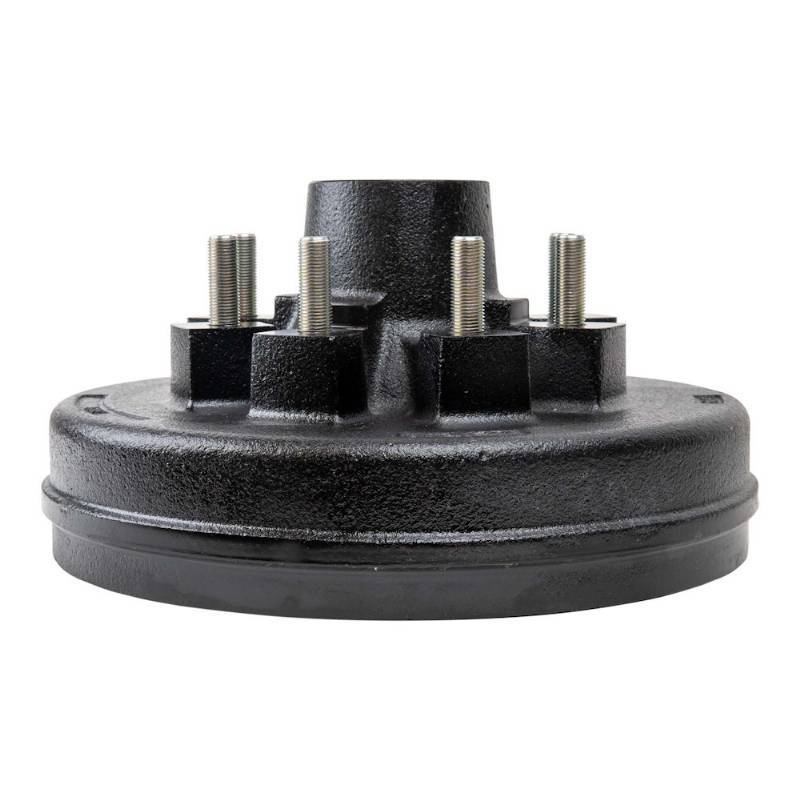

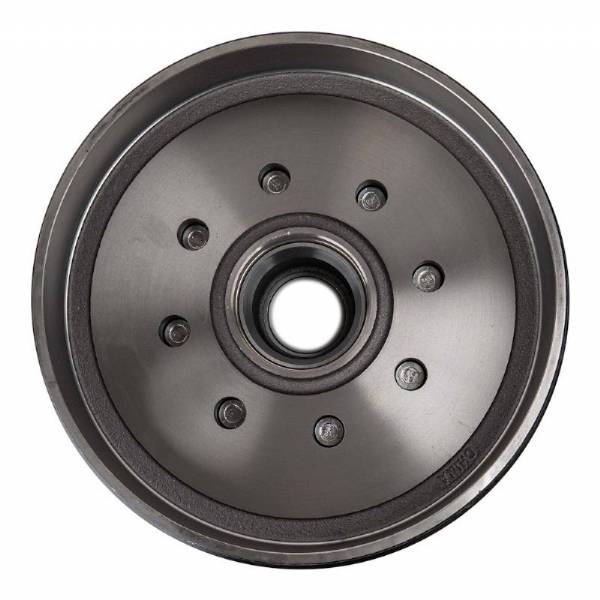

Trailer Tech TT7-865-916DK pre greased 12" hub and drum kit has a 8 on 6-1/2" bolt pattern and fits 6000 lbs. and 7000 lbs. capacity axles using 9/16" lug studs. Compatible with electric and hydraulic drum brake systems. No need to assemble, this hub drum already has the bearings greased with Mobile GREASE lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Comes with lubeable style dust cap that is compatible all with E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/4" inner diameter outer bearing and a 1-3/4" inner diameter inner bearing combination
Complete pre-greased fully assembled boxed trailer 12" drum kit for 1 wheel.

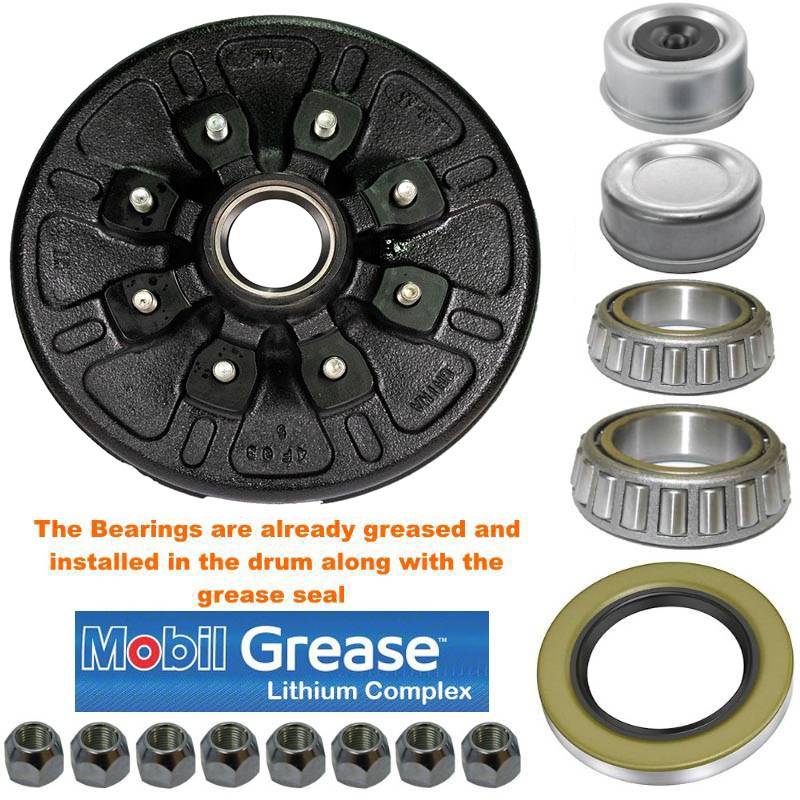

Pre-greased fully assembled kit Includes:

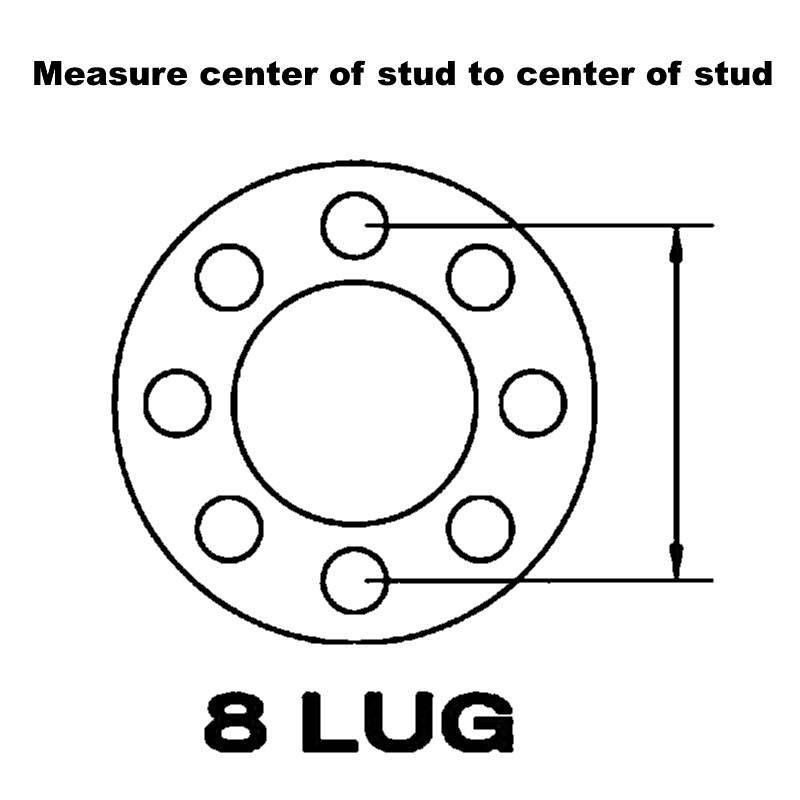

- 1 - 99-865-916 Integrated hub-and-drum with 8 on 6-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 12" x 2" hydraulic and electric trailer brakes
- 9/16"-18 thread pitch lug studs
- Rated 3500 lbs. capacity per side
- 1 - 14125A bearing cone (pre-greased and pre-installed)
- 1-1/4" (1.250") inner diameter
- 1 - 25580 bearing cone (pre-greased and pre-installed)
- 1-3/4" (1.750") inner diameter
- 1 - 14276 outer bearing cup race (pre-installed)
- 1 - 25520 inner bearing cup race (pre-installed)
- 1 - SL225-1 Grease seal
- 2.250" inner diameter
- 3.376" outer diameter
- 1 - 21-43 2.72" outer diameter lube style cap
- 1 - 85-1 Rubber plug
- 1 - 5-101 Tang washer
- 1 - 5-23 "D-Style" washer
- 1 - 5-27 1" Round washer
- 1 - 6-1 1" Castle nut
- 1 - 19-2 cotter pin
- 8 - 6-53 9/16"-18 thread pitch zinc plated 60 degree coned lug nuts
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
