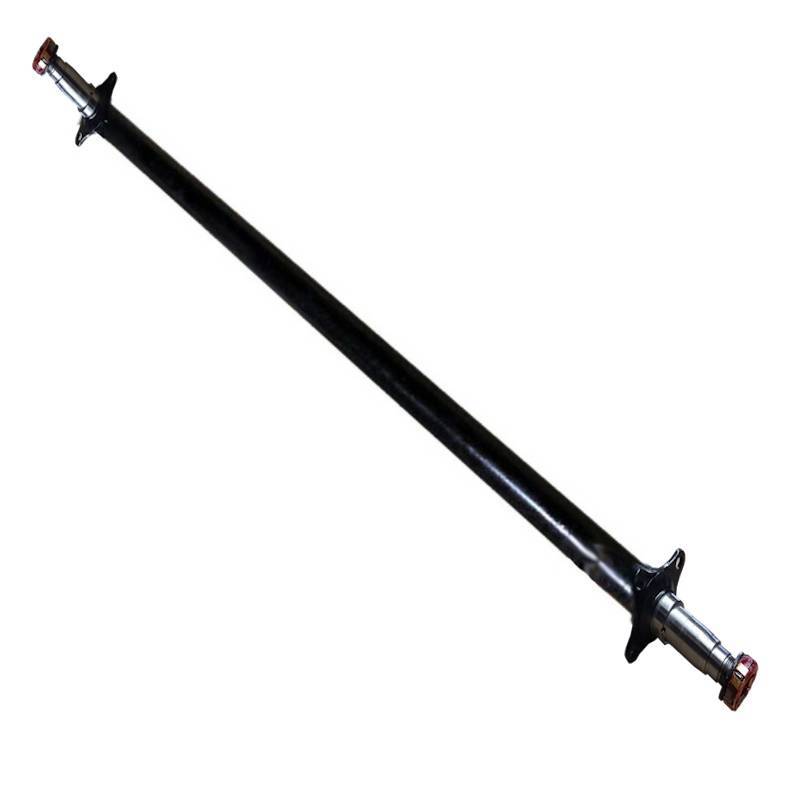

Dexter Axle TS3587EZ 3500 lbs. capacity straight trailer axle beam with E-Z Lube spindles.
Specs:
- 91.5" Overall Length
- 87" Hub Face
- 80.6" Brake Flange to Flange
- 69" min to 75.75" max spring centers tolerance

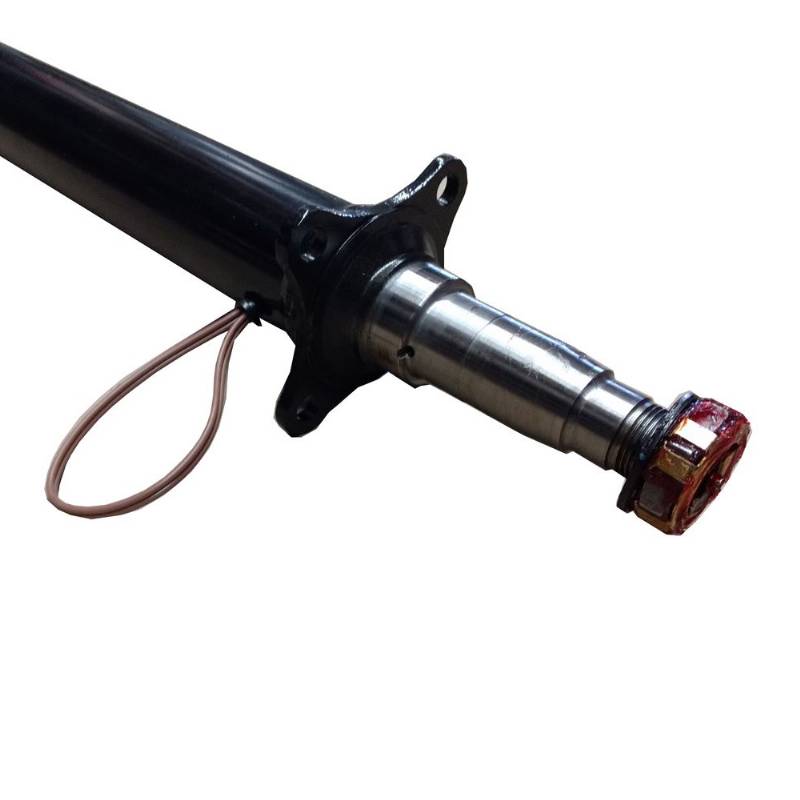

Comes with spindle nuts, nut retainers, and washers. Axle beam is round tube and tube diameter is 2-3/8". Axle beam is pre-wired to accept electric brakes. Our 3500 lbs. capacity axle beam comes standard with 4-hole brake mounting flange that is compatible with all standard 10" trailer brakes. Axle takes standard 1-1/16"ID outer bearing, 1-3/8"ID inner bearing and 1.725"ID grease seal - sold separately.
Axle is designed to be used with sprung type suspensions. Comes with leaf spring seats loose that can be welded in place depending on location and beam tolerances. Spring seats can be installed either under-slung meaning spring seats used on underside of tube, or over-slung meaning spring seats used on top of tube body. Having the spring seats come not pre-installed makes this axle beam more universal than hoping to find one with the seats welded in the correct position.
Axle has a camber arch in the center, the upward bend in the axle is called "camber." Camber is the angular relationship of the wheel to the road surface in the vertical plane. Axles are built with a pre-determined camber in the tube that compensates for the expected deflection under load.

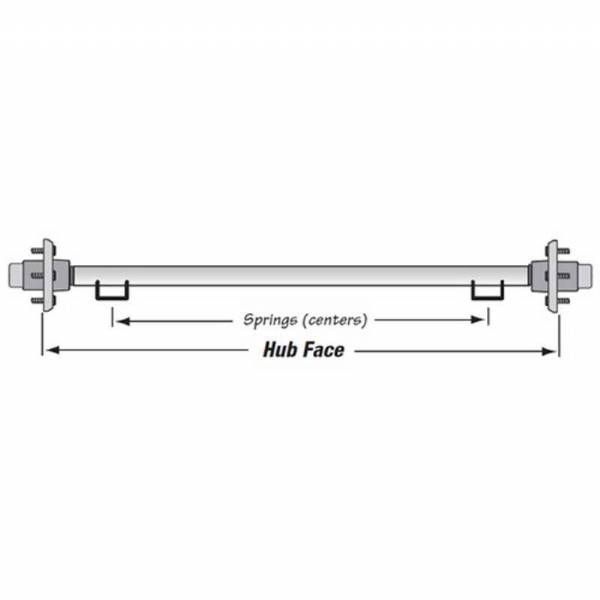

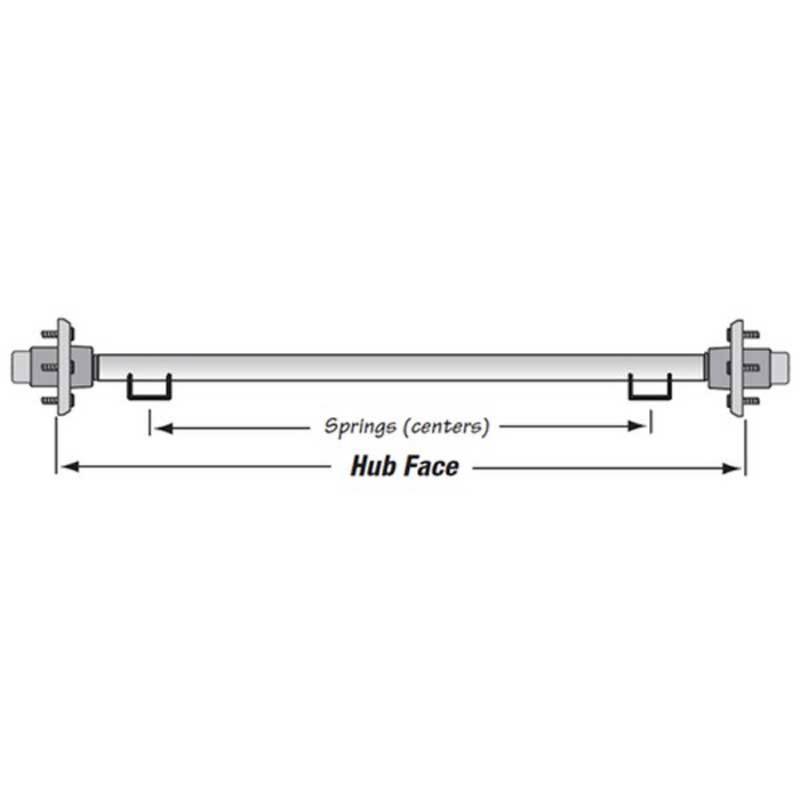

Please see images above for correct measurement locations.
